Woodpecker Fi-E & Fi-P Obturation System: Redefine Your Entire Endodontic Workflow
The Woodpecker Fi-E & Fi-P Combo System perfectly synchronizes two premium gutta-percha obturation devices to deliver an efficient, void-free continuous wave obturation workflow. For apical downpack, the Fi-P Pen heats up in just 0.2 seconds for instant, precise cutting. For backfilling, the Fi-E Dispenser automates gutta-percha flow via a 360° rotatable needle to prevent voids. Supported by high-capacity batteries for extended chairside use, this dual-device obturation system drastically prevents micro-leakage and material degradation.
Note: The Woodpecker Fi-E gutta-percha dispenser is an electronic pen-style device, while the Woodpecker Fi-G model uses a gun-style handle that is squeezed to dispense warm gutta-percha. In addition, both the black and white Fi-P units use the same tips, which are fully interchangeable between the two models and colors.
【Operation Demonstration Fi-E】
【Operation Demonstration Fi-P】
【Inspection and Maintenance Fi-P】

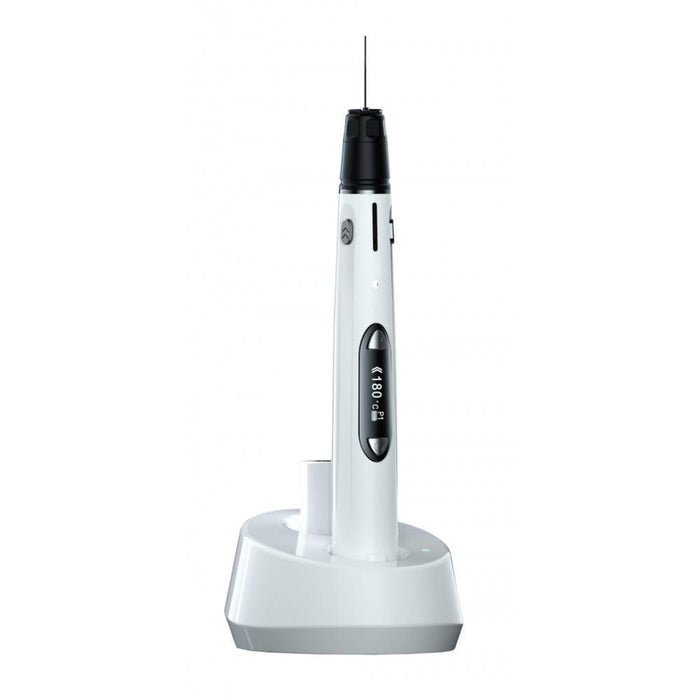

Fi-E
Features
-
Wireless and Electric: Perfect gutta-percha fluidity, uniform and smooth gutta-percha output without bubbles. Easier than traditional manual gutta-percha injection to relieve hand fatigue for the operator. Eliminate surgical hazards caused by gutta-percha leakage and overflow. Maintenance-free thanks to automatic cleaning of remaining gutta-percha.
-
Reusable Injection Needle (360° Rotatable): The gutta-percha bar is directly loaded into the injection needle. There is no gutta-percha residue inside the machine, making it easier to clean. The gutta-percha bar can be replaced at any time without waiting for the internal cooling of the machine.
-
Dual Button Design: Symmetrically designed dual injection buttons, sensitive and convenient.
-
Precise and Intuitive Display of Remaining Gutta-Percha: An indication window is set on the front of the machine to display the remaining gutta-percha intuitively and accurately.
-
Intelligent Protection System: Auto heating stops after timeout; Auto shutdown after timeout
-
Charging Base with Battery & Temperature Monitoring Design: Charging base enable battery temperature monitoring, guaranteeing more secure charging
-
Dual Batteries for More Durability: 2 x 2000mAh batteries, allowing quick replacement in 1 sec. Dual batteries deliver longer endurance, enabling filling about 100 root canals.
-
Equipped with Injection Needles: Disposable injection needles for option, meeting strict infection control requirements.
Specification
- Input Power: 100V-240V, 50/60Hz, 800mA
- Output Power: 15V/1.6A
- 5 Preset Temperatures: 100°C→120°C→150°C→180°C→200°C
- 3 Injection Speeds: Slow, Medium, Fast
- Main Unit Battery: 18500, 2000 mAh
- Charging Time: About 2.5h (3h for the first charge)
- Heater Rating: 10W
- Size of Unit: 25mmx28mmx200mm
- Net Weight: 148g
Packing List
- Main Unit × 1
- Charging Stand × 1
- Power Adapter × 1
- Battery × 2
- Injection Needle × 4
- Heat Insulation Sleeve of Needle × 4
- Heat Insulation Hood × 2
- Wrench of Needle × 1
- Gutta-Percha Ring × 1
- Instruction Manual × 1
- Qualified Certification × 1
- Warranty Card × 1
- Packing List × 1
Fi-P
Features
- With high-precision temperature control and a heating speed of 0.2 seconds, it ensures efficient and safe work.
- With 4 working temperatures (150ºC, 180ºC, 200ºC, and 230ºC) that adapt to the different gutta-perchas on the market.
- High-capacity battery with up to 4 hours of autonomy (1,500 operations on a full charge).
- Its dual-directional display facilitates both left- and right-handed operation.
- Pre-curved 0.35 mm Attackers/Pluggers: The thinner tips can penetrate deep into the narrow root canal, even in lateral roots.
Specification
- Handpiece Weight: 80g.
- Battery Capacity: 2,000 mAh
- Recharging Time: 2.5 hours
- Autonomy Duration: 1,500 operations
- Preset Temperatures: 150ºC, 180ºC, 200ºC, 230ºC
- Warm-up Time: in 0.2 seconds
Picking List
- Main Unit × 1
- Charging Stand × 1
- Power Adapter × 1
- WP4004 Tip × 1
- WP4504 Tip × 1
- WP5506 Tip × 1
- WP5508 Tip × 2
- Heat Insulation Sleeve for Tips × 4
- Instruction Manual × 1
- Qualified Certification × 1
- Warranty Card × 1
- Packing list × 1
Warranty
One-year warranty (not including customer damages).
