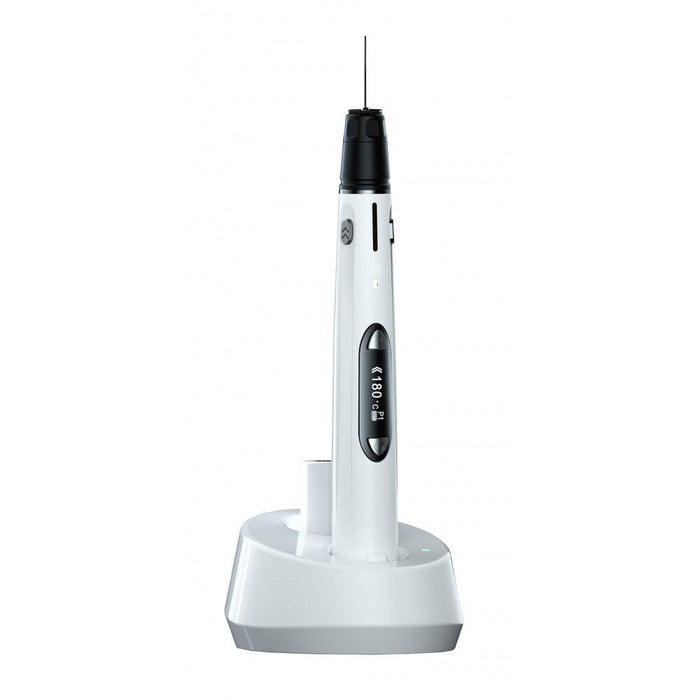

The Woodpecker Fi-E gutta percha dispenser delivers warm filling material without manual squeezing. Its dual-button design and 360° rotatable reusable needle support precise control in narrow posterior canals, while 5 preset temperatures help maintain stable heating for root canal treatments. Backed by a 1-year warranty and powered by dual high-capacity batteries, the Woodpecker Fi-E is designed for repeated clinical use in busy operatory workflows.
Note: The main difference between the Fi-E and Fi-G gutta-percha dispensers is the operating style. The Woodpecker Fi-G uses a gun-type handle that is squeezed during delivery, while the Woodpecker Fi-E is an electronic pen-type dispenser that releases warm gutta-percha without the need to squeeze a handle.
Wireless and Electric: This advanced injectable gutta percha system delivers perfect fluidity and uniform, smooth output without bubbles. It is much easier than traditional manual injection, effectively relieving hand fatigue for the operator and eliminating surgical hazards caused by gutta-percha leakage and overflow. The system is entirely maintenance-free thanks to the automatic cleaning of remaining gutta-percha.

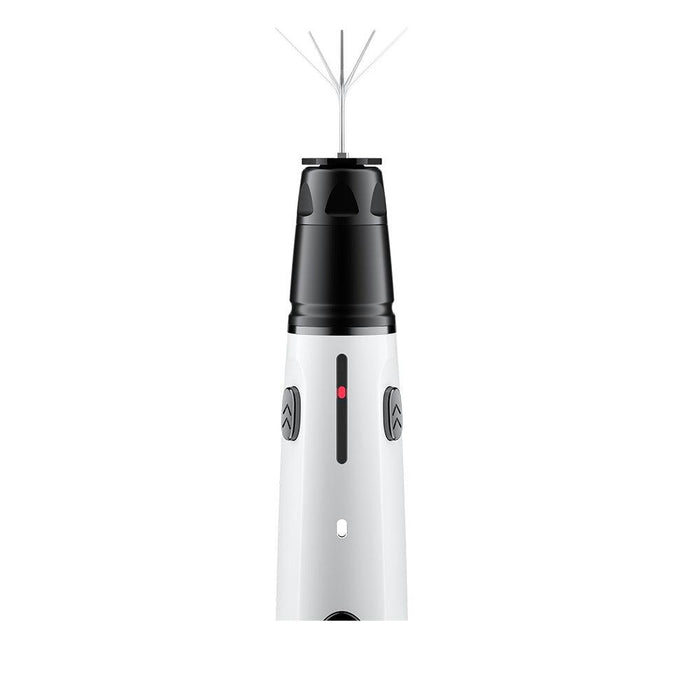

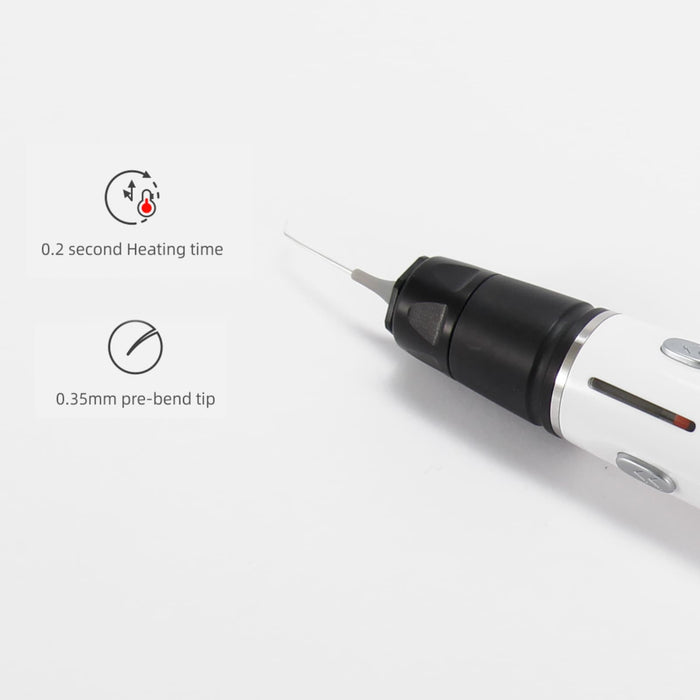

Reusable Injection Needle (360° Rotatable): The gutta-percha bar is loaded directly into the injection needle, leaving no residue inside the machine and making cleanup easier. The bar can be replaced at any time without waiting for the internal cooling of the Woodpecker Fi-E.
Dual Button Design: Symmetrically designed dual injection buttons are highly sensitive and convenient, allowing both left- and right-handed clinicians to control the flow with maximum comfort.

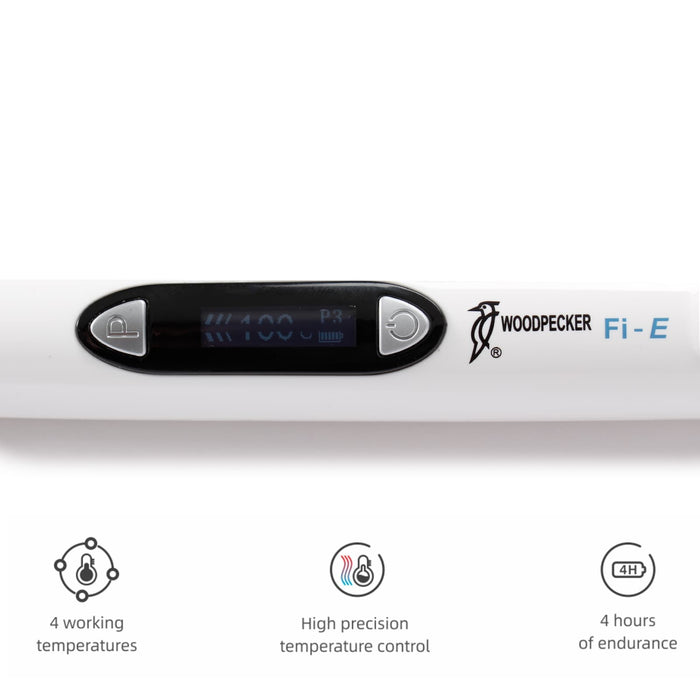

Precise and Intuitive Display of Remaining Gutta-Percha: A clear indication window is set on the front of the machine to display the remaining gutta-percha intuitively and accurately during root canal procedures.
Intelligent Protection System: The smart Woodpecker Fi-E features an auto-heating stop and an auto-shutdown after a timeout to ensure complete clinical safety.
Charging Base with Battery & Temperature Monitoring Design: The charging base enables battery temperature monitoring, guaranteeing more secure charging.
Dual Batteries for More Durability: Packaged with two 2000mAh batteries, the system allows quick replacement in just 1 second. These dual batteries deliver longer endurance, enabling the filling of about 100 root canals.
Equipped with Injection Needles: The kit includes disposable injection needles for option, meeting strict infection control requirements.
Applications
Designed exclusively for endodontic filling with gutta-percha or root canal sealant, the cordless Woodpecker Fi-E is equipped with a specialized gutta-percha injecting needle and a thermal protector cap to heat up and soften gutta-percha to backfill the root canal. Woodpecker Fi-E & Fi-P work together to provide a complete gutta-percha obturation system for efficient root canal procedures.
Specifications
Input Power
AC100V-240V, 50/60Hz, 800mA
Output Power
DC15V/1.6A
Preset Temperatures
100°C / 120°C / 150°C / 180°C / 200°C
Injection Speeds
Slow / Medium / Fast
Main Unit Battery
18500, 2000 mAh
Charging Time
About 2.5 hours (3 hours for the first charge)
Heater Rating
10W
Unit Size
25mm × 28mm × 200mm
Net Weight
148g
Packing List
Main Unit × 1
Charging Stand × 1
Power Adapter × 1
Battery × 2
Injection Needle × 4
Heat Insulation Sleeve of Needle × 4
Heat Insulation Hood × 2
Wrench of Needle × 1
Gutta-Percha Ring × 1
Instruction Manual × 1
Qualified Certification × 1
Warranty Card × 1
Packing List × 1
Warranty
One-year warranty (not including customer damages).
Issue 1: "Heating Error" Prompt
Cause: If the heating needle is not installed, the device may be unable to reach or detect the required heating condition. As a result, the device may display a “Heating Error” message.
Solution: Install the heating needle supplied with the device and restart the device for testing.
Issue 2: Red indicator cannot retract to allow gutta-percha placement.
Cause: The filling device is equipped with an internal push-rod that is used to push the gutta-percha forward during operation. The push-rod remains in the forward position after extruding gutta-percha. If not fully retracted, it occupies the loading chamber, preventing new gutta-percha from being inserted and keeping the working tip from tightening properly.
Solution: To reset the push-rod and clear the chamber: long-press the "P" button to access function settings, then short-press "P" to select "Gutta-Percha Replace". Select "YES" by short-pressing the Power button, then short press any injection button to automatically purge residual gutta-percha. Once the residual gutta-percha is purged, the device will automatically retract the push-rod to its starting position. Please refer to the step-by-step reset operation in the video at 2:30.
How do I correctly load gutta-percha and attach the heating needle?
Use tweezers to insert a gutta-percha bar into the rear opening of the needle assembly. Fit the needle onto the handpiece, hand-tighten the nut, and then use the provided wrench to turn the nut clockwise until fully secured. Slide the thermal guard sleeve over the needle base before operation.
How do I adjust temperature presets and injection speeds?
Long-press the "P" button to enter temperature settings, then short-press the Power button to cycle through the 5 preset options. Short-press "P" again to enter injection speed settings, select your preferred injection speed using the Power button, and press any Injection switch to confirm and save.
How do I purge residual gutta-percha?
Long-press "P" to access the settings menu, then short-press "P" to navigate to "Gutta-Percha Replace". Short-press the Power button to select "YES", and short-press any Injection switch. The device will automatically extrude the remaining gutta-percha.
