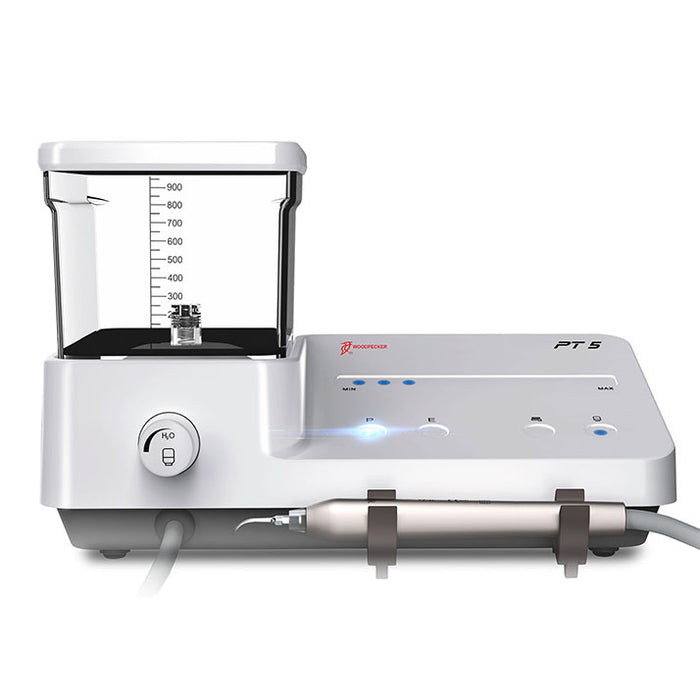

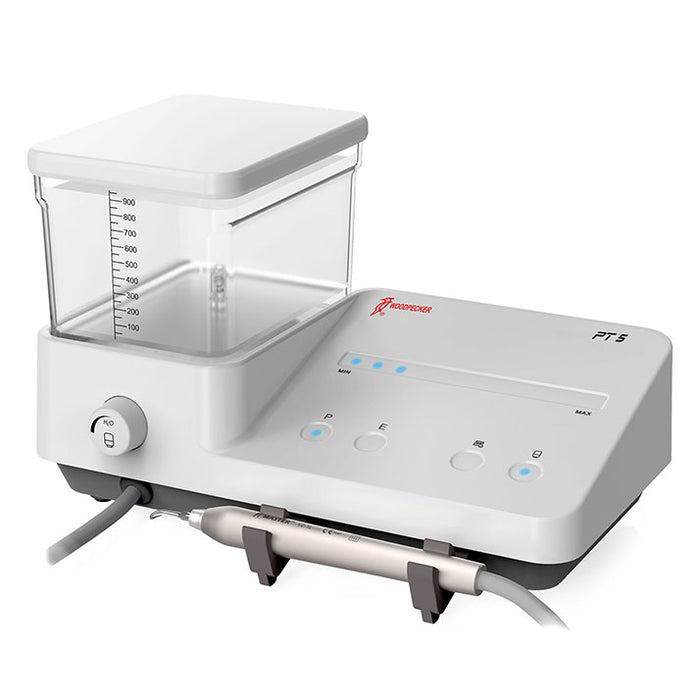

Woodpecker PT5 Piezoelectric Ultrasonic Scaler. 12 Power Setting, Automatic Water Supply System. Amplitude 20-60UM, frequency 28000 - 42000Hz, treatment depth 14mm. Equipped with: 2 handpieces, 15 tips (E51x1, E52x1, E3x1, E3Dx1, E6x1, E7x1, P4Dx1, P50Rx1, P50Lx1, P52x1, P53Lx1, P53Rx1, P56x1, P59x1, P90x1), 2 wenches, 2 disinfection kits. Autoclaved Handle bracket, automatic water supply system with 20ml marks, use w/ hydrogen peroxide, sodium hypochlorite, chlorhexidine. Painless periodontal and endodontic applications. 1-year warranty.

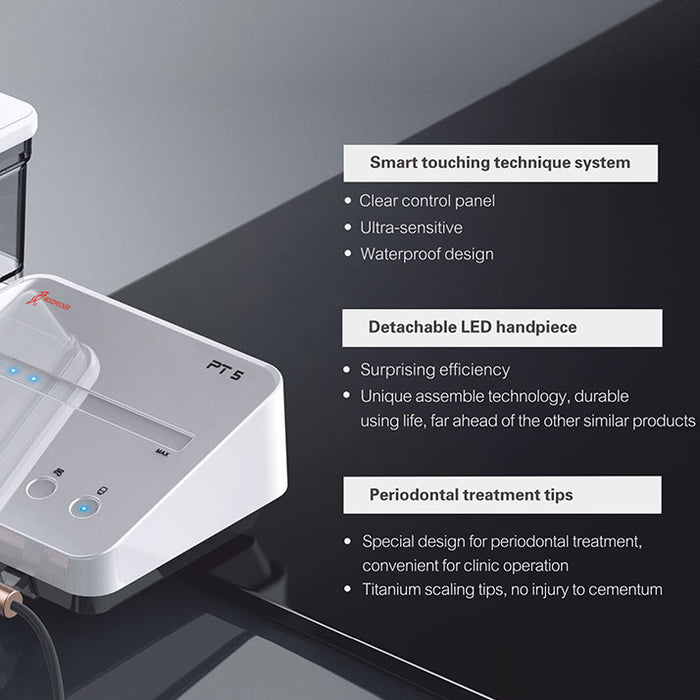

Features
-
Painless Circular Vibration Technology: The PT5 utilizes a unique elliptical vibration trajectory. With a vibration amplitude of only 20-60μm, it disperses the impact force, ensuring a virtually painless experience for patients even during deep subgingival scaling.
-
Titanium Alloy Tips for Gentle Care: Equipped with high-performance Titanium Alloy tips, the device is designed to be softer than tooth enamel. This protects the cementum and root surface while effectively removing calculus and biofilm.
-
Intelligent Power Feedback: The built-in smart sensor automatically adjusts the power output based on the resistance of the tooth surface. Whether it's stubborn calculus or soft plaque, the PT5 provides the exact energy needed.
-
Integrated Self-Water Supply: Built-in water tank operates with an internal water reservoir or connects to the dental unit's water supply, providing flexibility in water source. The dual-bottle system supports the use of clinical liquids such as Chlorhexidine, Hydrogen Peroxide, or Sodium Hypochlorite, allowing for simultaneous scaling and pharmaceutical irrigation.
-

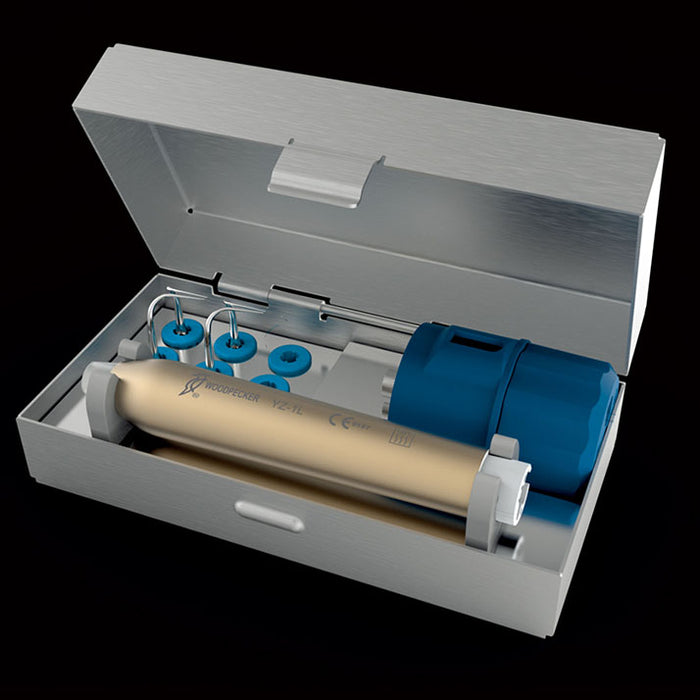

Ergonomic LED Handpiece: The high-intensity LED light provides 360° shadow-free visibility. The handpiece is detachable and supports 135°C high-temperature sterilization, ensuring peak hygiene standards.
-
Dual Mode Operation: Easily switch between Normal Mode for general scaling and Endo Mode for root canal cleaning with a simple touch.

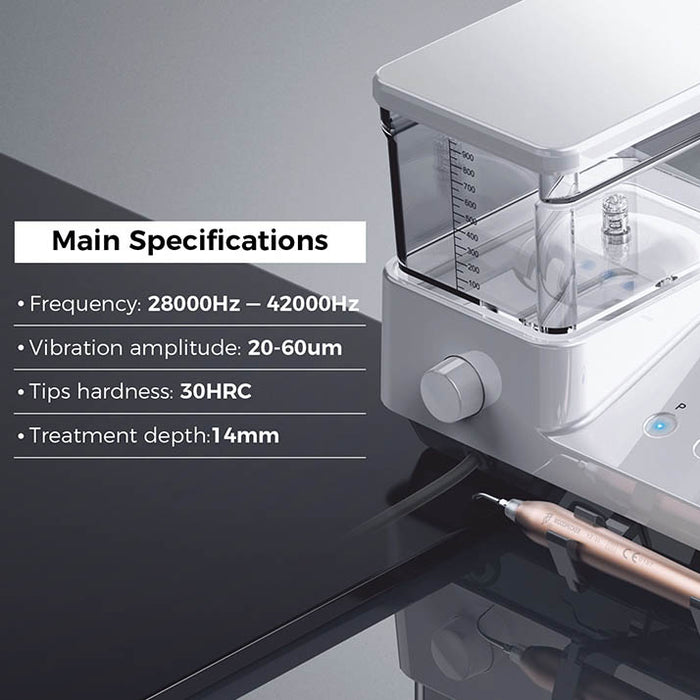

Technical Parameter
| Specification |
Details |
| Main unit input: |
110V ~50HZ/60HZ |
| Output primary tip vibration excursion |
≤60μm |
| Output half-excursion force |
<2N |
| Output tip vibration frequency |
28kHz ± 3kHz |
| Output power |
3W to 20W |
| Water pressure |
0.01MPa to 0.5MPa |
| Weight of main unit |
2.0kg |
Packing List
- Main unit x 1
- LED handpieces x 2
- Power supply system x 1

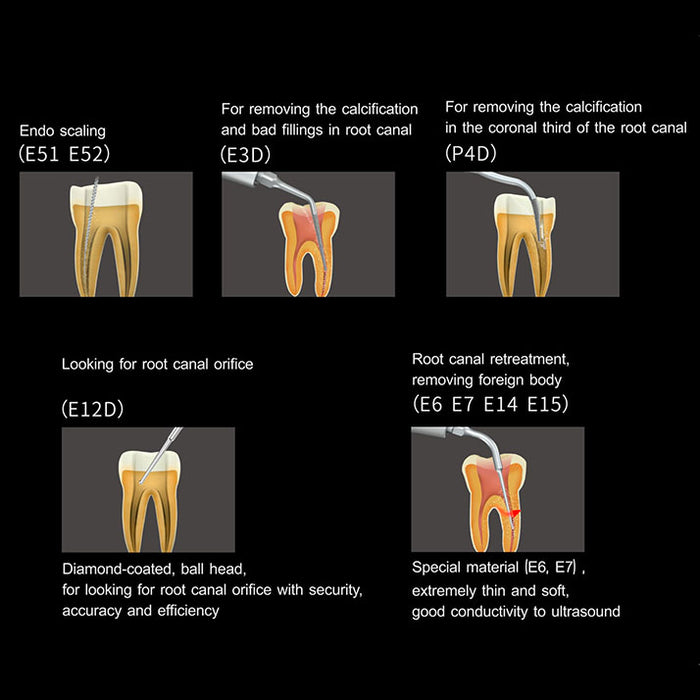

- Scaling tips x 15 ( (E51x1, E52x1, E3x1, E3Dx1, E6x1, E7x1, P4Dx1, P50Rx1, P50Lx1, P52x1, P53Lx1, P53Rx1, P56x1, P59x1, P90x1))
- Torque wenches x 2
- Water bottles x 2
- Disinfection kits x2
Warranty
One-Year Warranty
