Woodpecker Smart A Brushless Endo Motor App-Controlled Intelligent Endo System

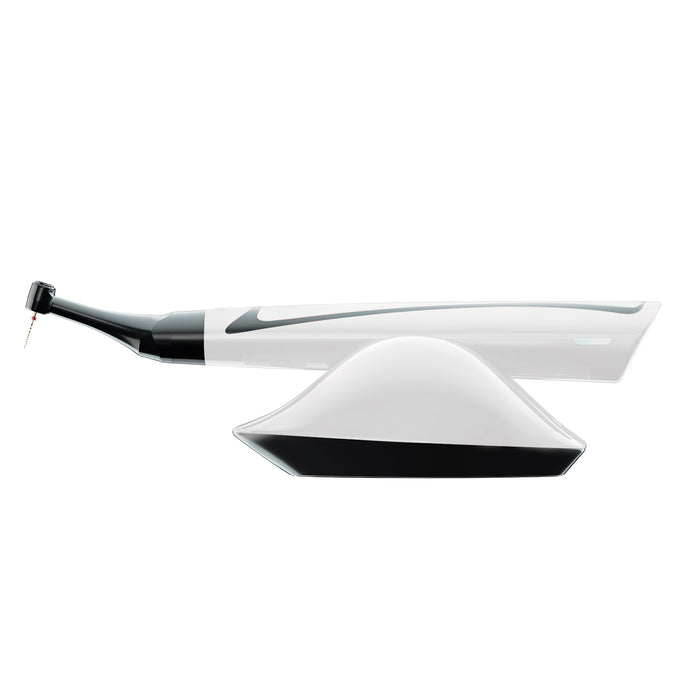

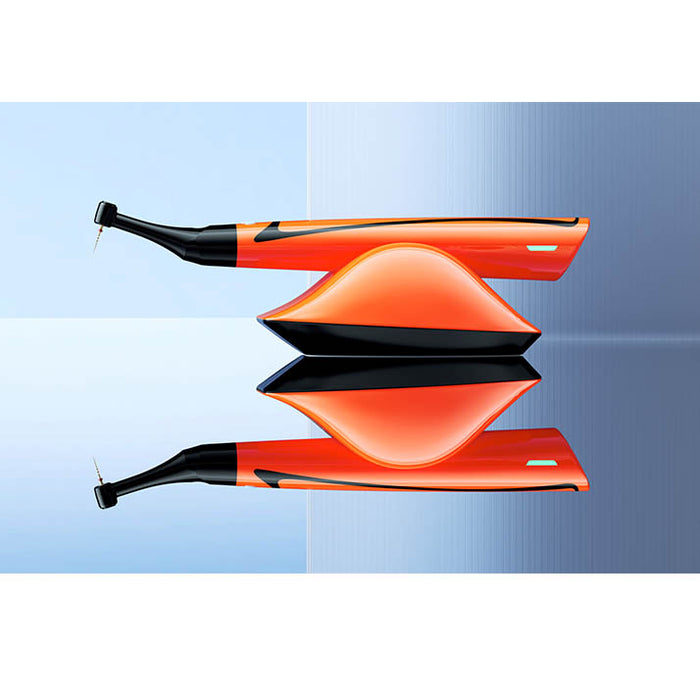

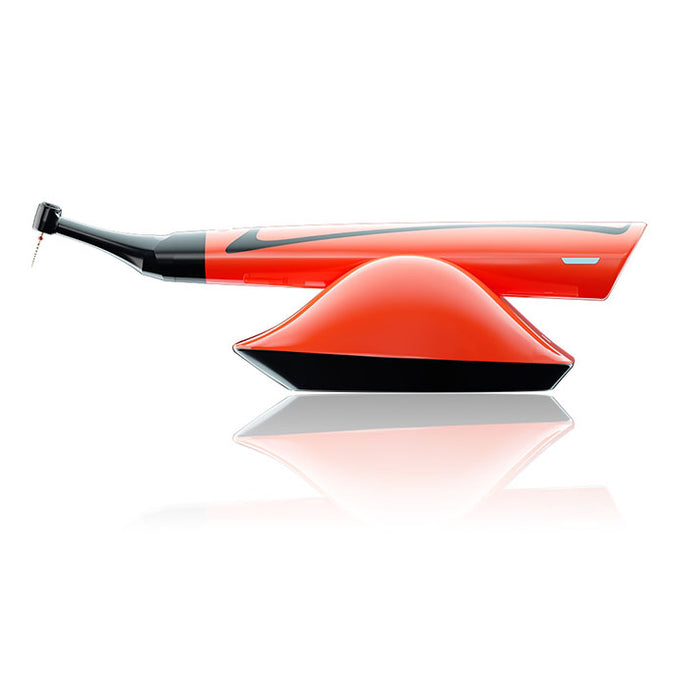

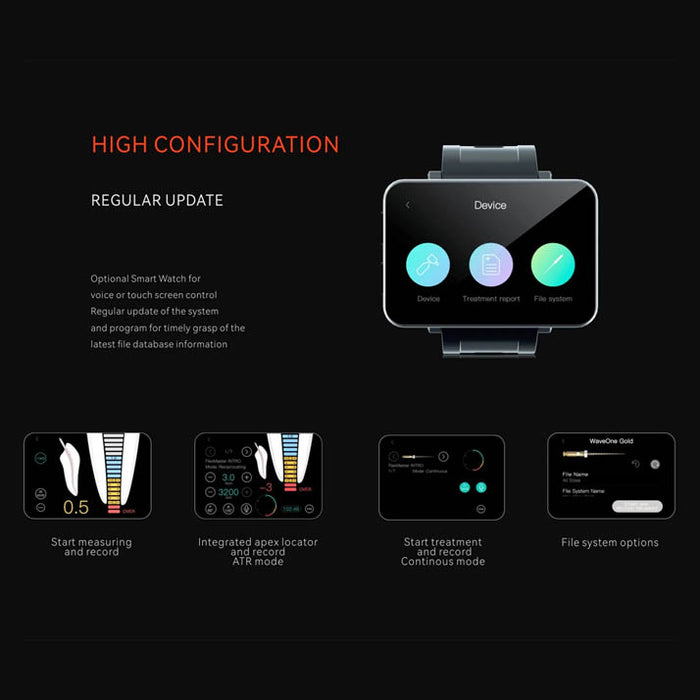

Woodpecker Endo Motor Smart A Orange/ White. Designed for modern endodontics. With Vivi voice control for near hands-free operation, a compact 6:1 contra-angle for easy access, and intelligent modes developed with endodontic experts, it delivers powerful, precise performance. Stay updated with regular upgrades, customize treatments with multi-brand file support, and securely store reports in the cloud—all in one smart, clinic-ready system. FDA approved.

Features

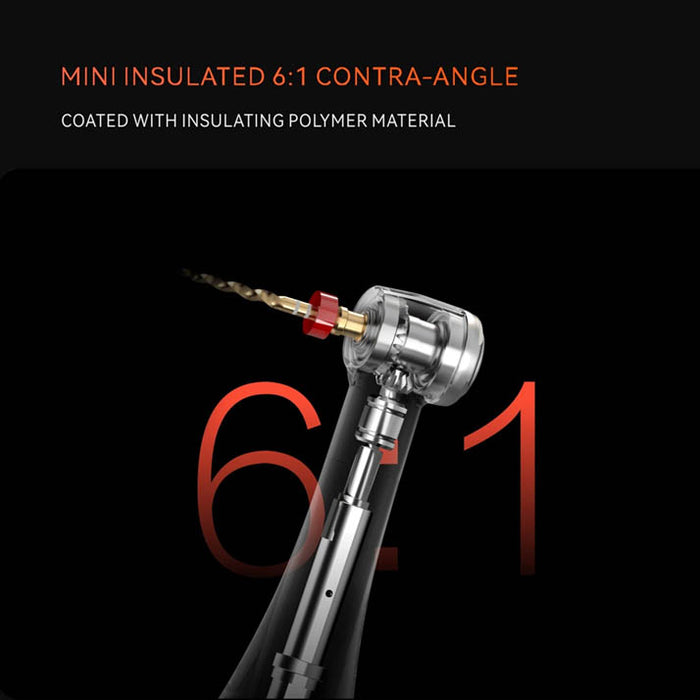

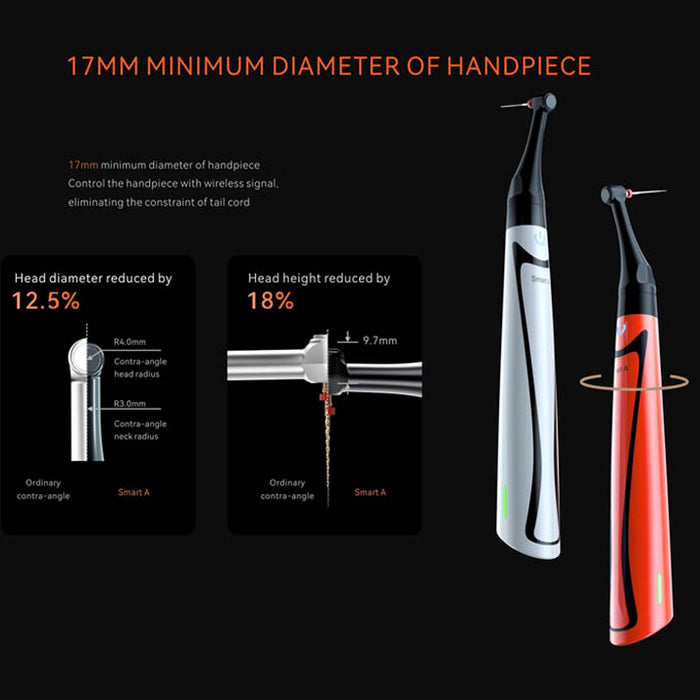

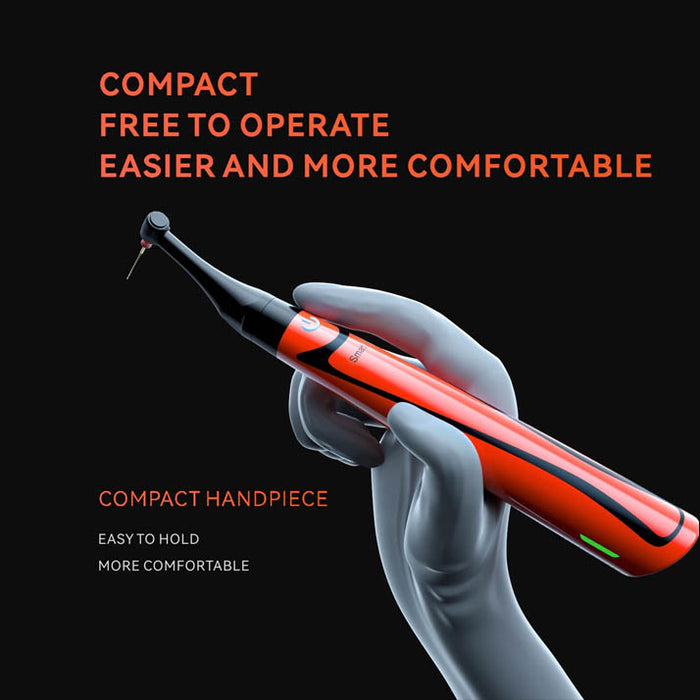

• Ultra-Ergonomic Design. Smart A features with a compact Handpiece. Only 17mm in diameter and 12.5% slimmer, with a 360° rotatable mini insulated 6:1 contra-angle for effortless access and control. Easy to hold, more comfortable.

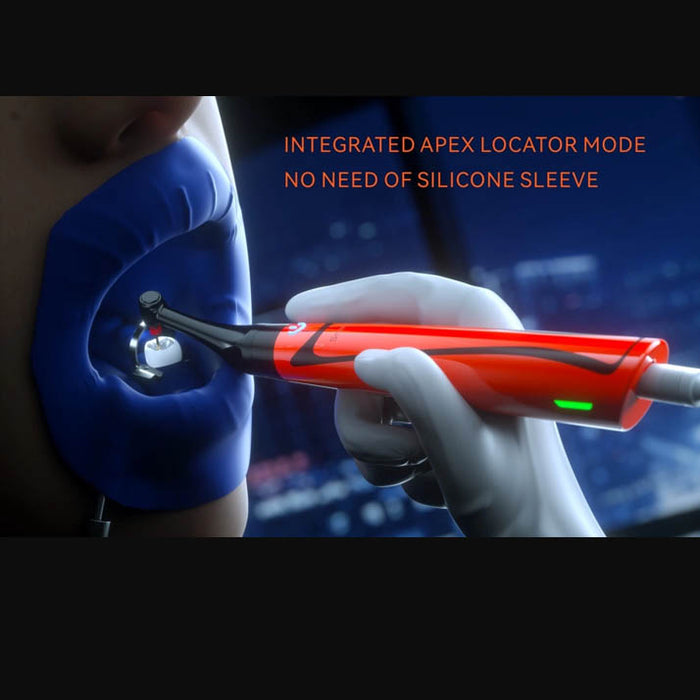

• Integrated Apex Locator. Special coating enables apex locating without a silicone sleeve, simplifying workflow.
• Powerful & Quiet Brushless Motor. The Smart A endo motor delivers 10x longer lifespan and 25–30% lower noise than brushed motors, ensuring stable cutting even in curved canals. Stable cutting can still be ensured at the narrow or curved apex. Reduce the risk of instrument separation and improve preparation efficiency.

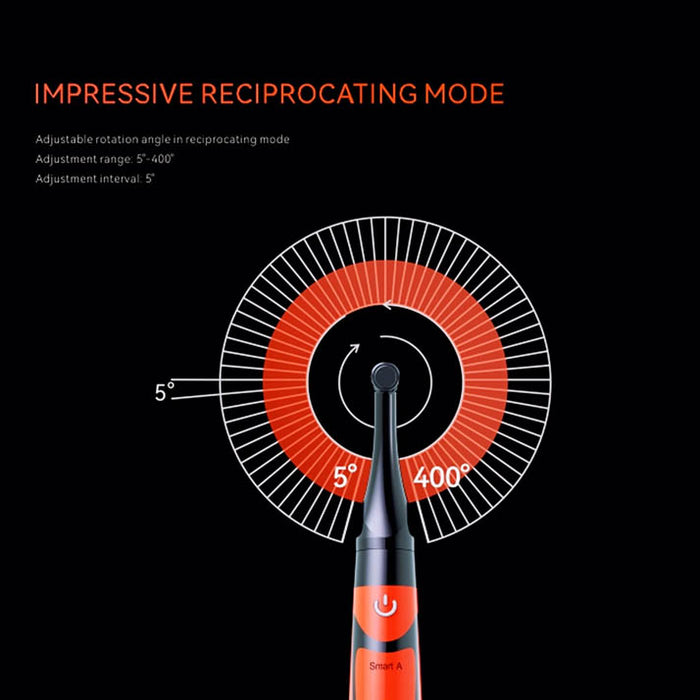

• Reciprocating Mode & Precision Rotation Control. Adjustable rotation angle in reciprocating mode. Adjustment range: 5-400 Adjustment interval: 5

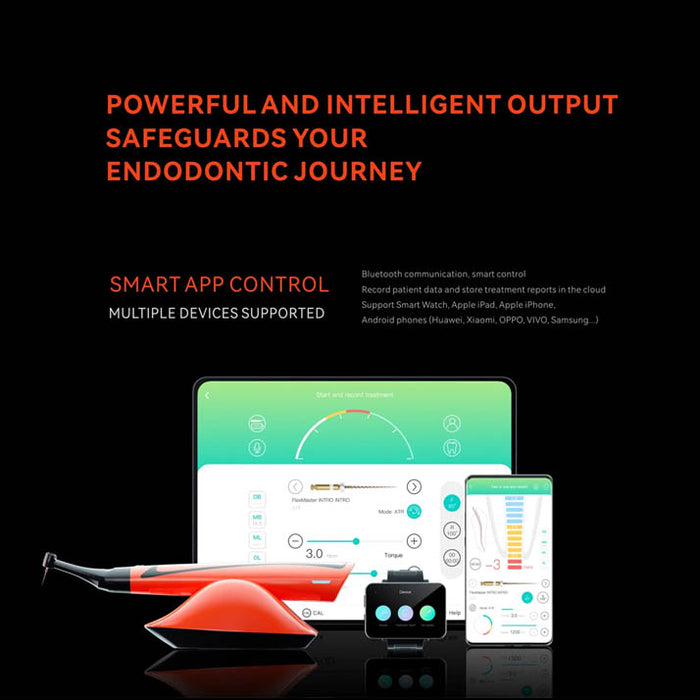

• Bluetooth Communication, SMART APP CONTROL. Operate via phone or iPad app for adjustable settings, file management, and multi-user clinic profiles. Multiple devices supported. Support Smart Watch, Apple iPad, Apple iPhone, Android phones(Huawei, Xiaomi, OPPO, VIVO, Samsung...)

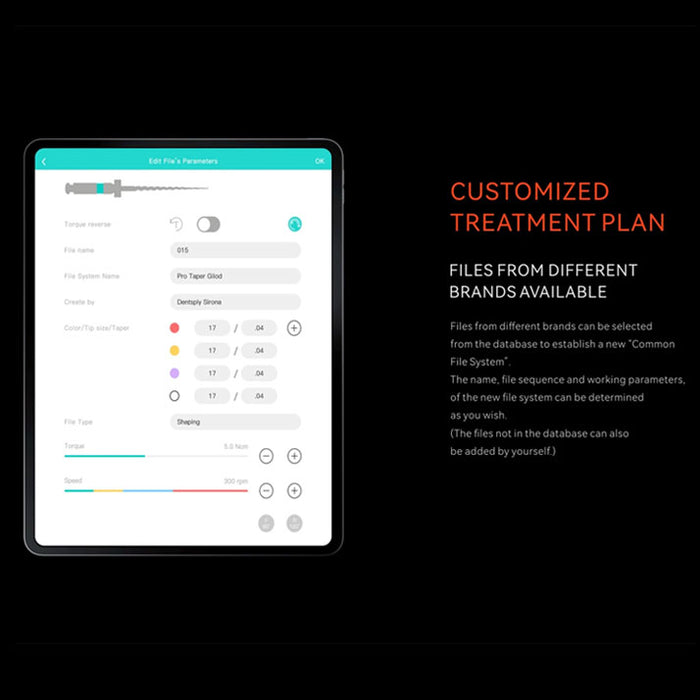

• Clinician-Friendly File System with Cloud Storage of Treatment. Stores 4 most-used file protocols for quick switching, supporting over 242 global file systems. Report delivers personal customization. Each dentist can create a personal account. Realize single device with multiple users, but independent information storage.

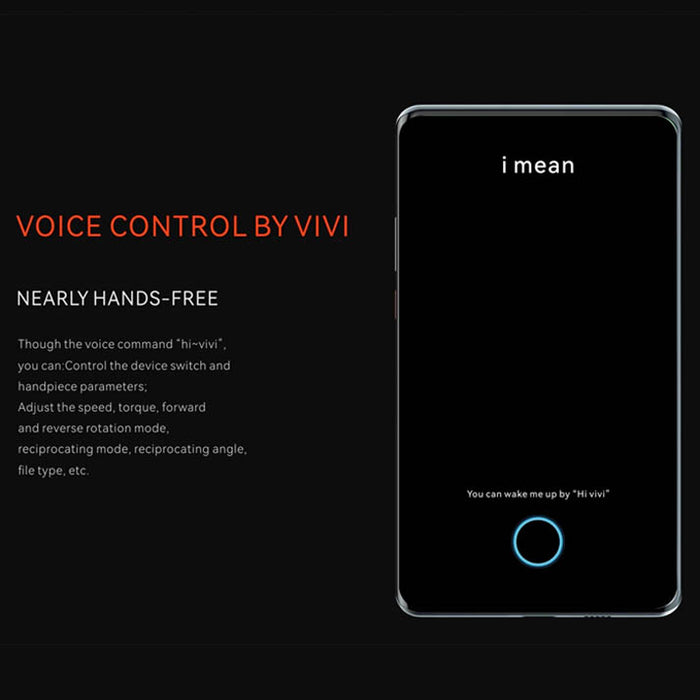

• Voice Control By vivi Nearly Hands-free. Though the voice command "hi~vivi", you can: Control the device switch and handpiece parameters; Adjust the speed, torque, forward and reverse rotation mode, reciprocating mode, reciprocating angle file type, etc.

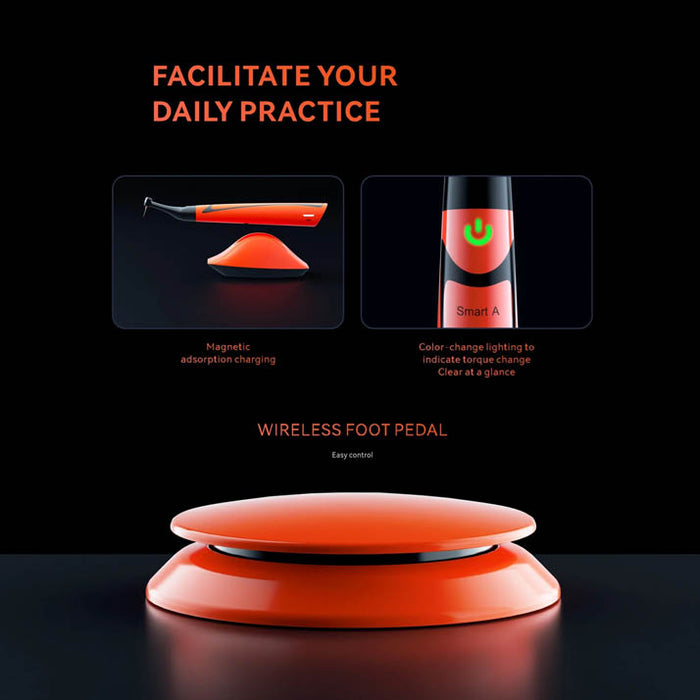

• Wireless Foot Pedal. Easy control.
• Color-change Lighting to indicate Torque change. Clear at a glance.
• Magnetic Adsorption Charging.


Specifications

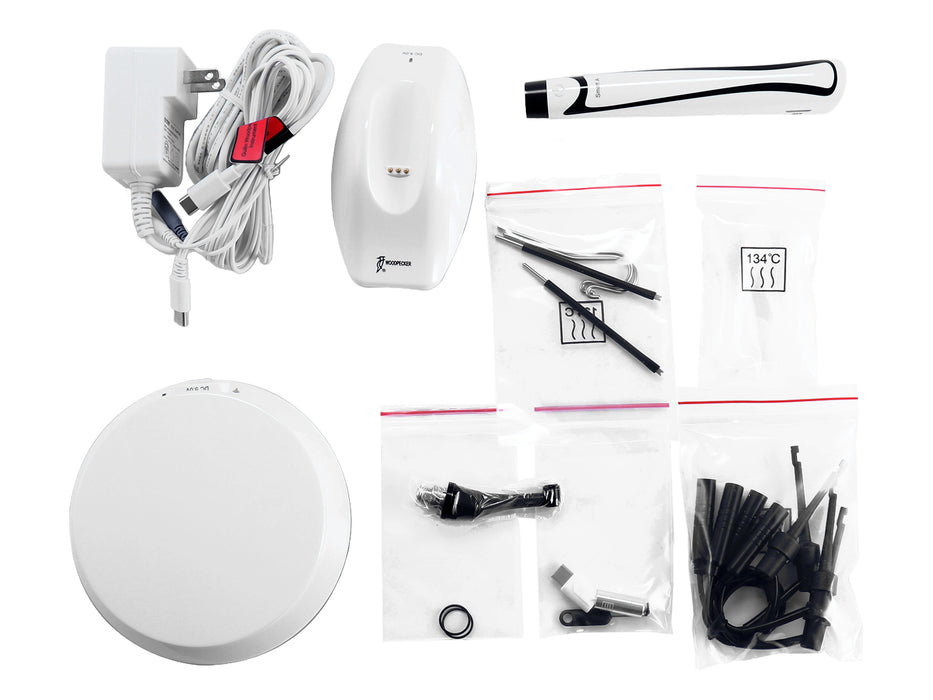

• Battery Base: Built in two 3.6V/2000mAh Li-ion battery packs with a charge voltage of 5VD.C, 1A
• Motor Handpiece: Built in a 3.7V/600mAh Li-ion battery pack
• Foot Pedal: Built in a 3.6V/750mAh Li-ion battery pack
• Power Adapter (Model:ADS-6AM-06N 05050EPG) Input: ~100V-240V 50/60Hz 0.4A Max and Output: DC5V/1A
• Torque Range: 0.4Ncm~5.0Ncm (4mNm~50mNm)
• Speed Range: 100rpm~2500rpm
• Charging of Handpiece: DC 5V/1A
• Software Version: V1.0.0
• Voice Assist: VVI
• Frequency Range: BLE 2402-2480MHz

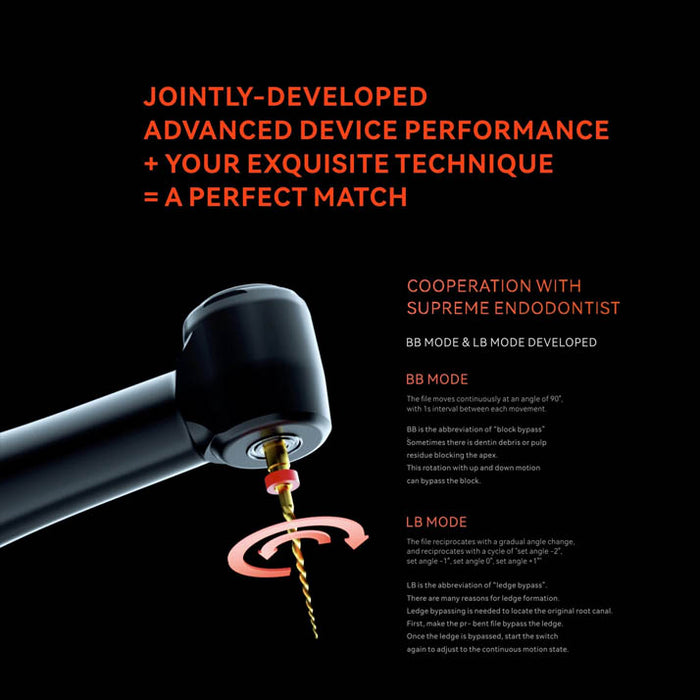

BB MODE & LB MODE DEVELOPED

• BB MODE: The file moves continuously at an angle of 90° with 1s interval between each movement. BB is the abbreviation of "block bypass Sometimes there is dentin debris or pulp residue blocking the apex. This rotation with up and down motion can bypass the block.
• LB MODE: The file reciprocates with a gradual angle change and reciprocates with a cycle of "set angle -2°, set angle -1°, set angle 0°, set angle +1°". LB is the abbreviation of "ledge bypass". There are many reasons for ledge formation. Ledge bypassing is needed to locate the original root canal. First, make the pr- bent file bypass the ledge. Once the ledge is bypassed, start the switch again to adjust to the continuous motion state.
