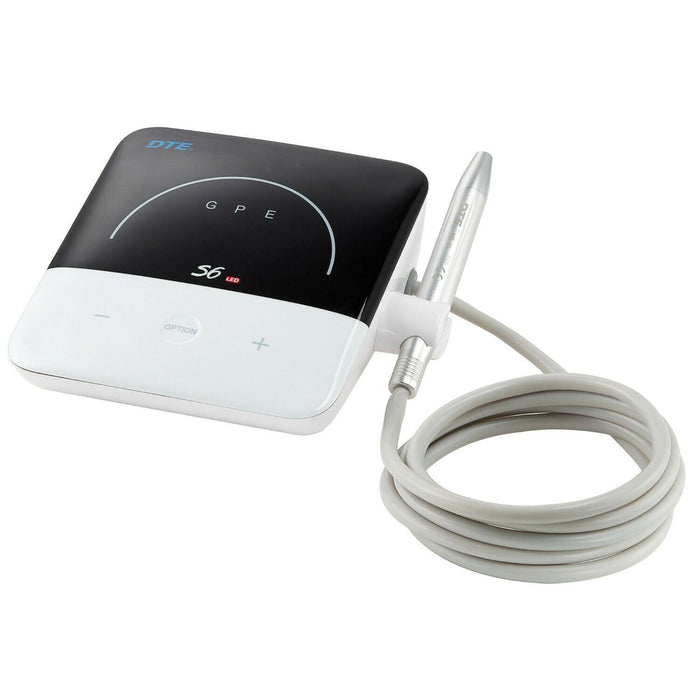

Woodpecker DTE S6 LED Ultrasonic Scaler: LED Visibility, Smart Touch Control, and Satelec Compatibility
The FDA-approved Woodpecker DTE S6 LED ultrasonic scaler combines integrated LED illumination, comfortable scaling technology, and intelligent touch controls to deliver a smoother clinical experience for both dentists and patients. Equipped with a detachable autoclavable HD-8L handpiece, automatic frequency tracking, and seven professional scaler tips, this 110V DTE S6 LED ultrasonic scaler provides reliable performance for scaling, periodontal, and endodontic procedures while enhancing treatment visibility and patient comfort.
*Please Note: This unit does NOT include the water supply or quick connector; you can purchase it separately from our store.
Woodpecker Auto Water Supply System AT-1
Woodpecker Dental Quick Connector For Water Hose
Features
-
LED-Enhanced Comfortable Scaling: The Woodpecker DTE S6 LED ultrasonic scaler combines integrated LED illumination with advanced comfortable scaling technology to enhance both treatment visibility and patient experience. Its sine-wave drive system helps reduce stimulation caused by instantaneous current output.
-
Comprehensive Scaling, Perio & Endo Applications: This dental piezo ultrasonic scaler integrates scaling, periodontal, and endodontic functions into a single system. From supragingival calculus removal to subgingival debridement and root canal treatment, the DTE S6 LED ultrasonic scaler supports a wide range of daily dental procedures.
-

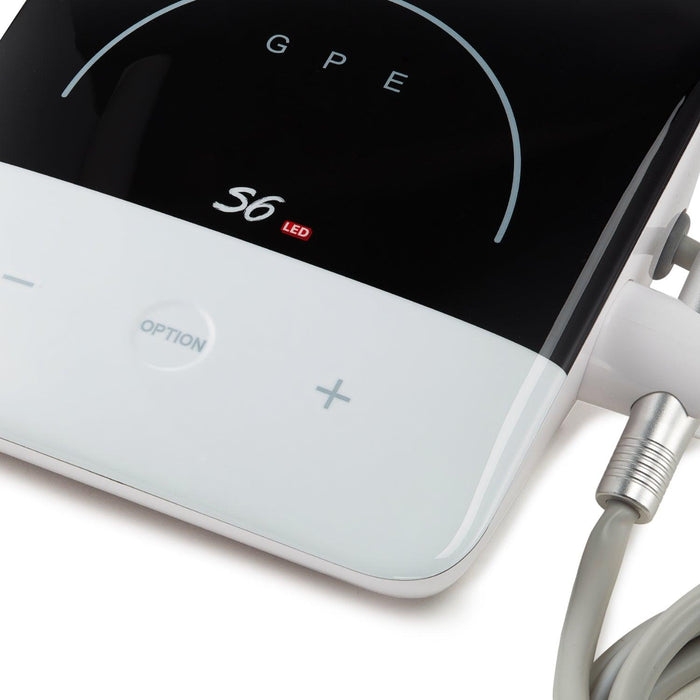

Intelligent Touch Control & Stable Frequency Management: Featuring an ultra-sensitive touch control interface and clear digital display, the system enables convenient operation and quick parameter adjustments. Automatic frequency tracking helps maintain optimal working frequency for more stable performance, while the intelligent degenerative system enhances clinical efficiency.
-

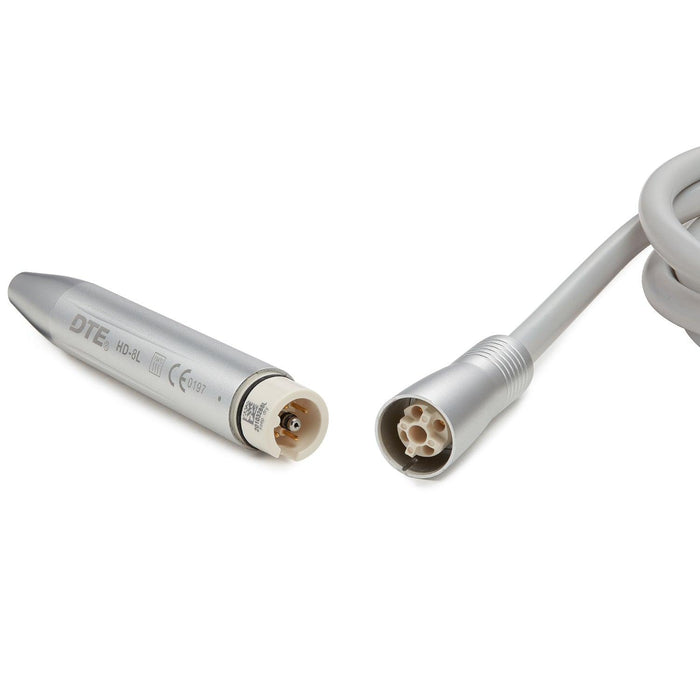

Autoclavable LED Handpiece & Complete 7-Tip Kit: The detachable HD-8L LED handpiece can be sterilized at up to 134°C and 0.22 MPa to support modern infection-control protocols. Supplied with seven professional scaler tips (GD5, GD12, PD4, PD7, PD12, and ED60), the system is ready for scaling, periodontal, and endodontic procedures.
Specification
| Main unit input |
24V~ 1.3A |
| Power supply input |
110V~ 50Hz/60Hz |
| Output power |
3W to 20W |
| Frequency |
28kHz ± 3kHz |

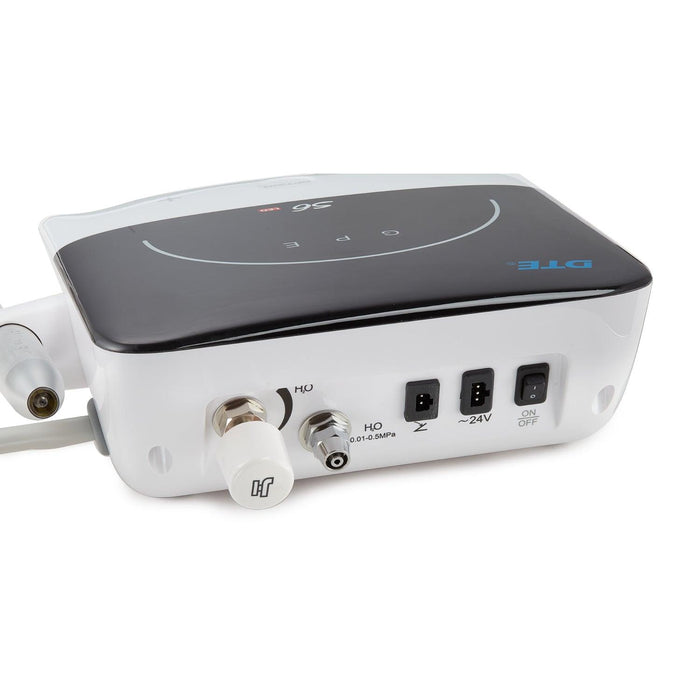

| Water pressure |
0.01 MPa–0.5 MPa |
| Dimensions |
7.8” x 6.9” x 3” (197mm x 174mm x 74mm) |
| Weight of main unit |
1.4 lb (0.65 kg) |
| Package |
1 pc/box, 5 boxes/ctn |

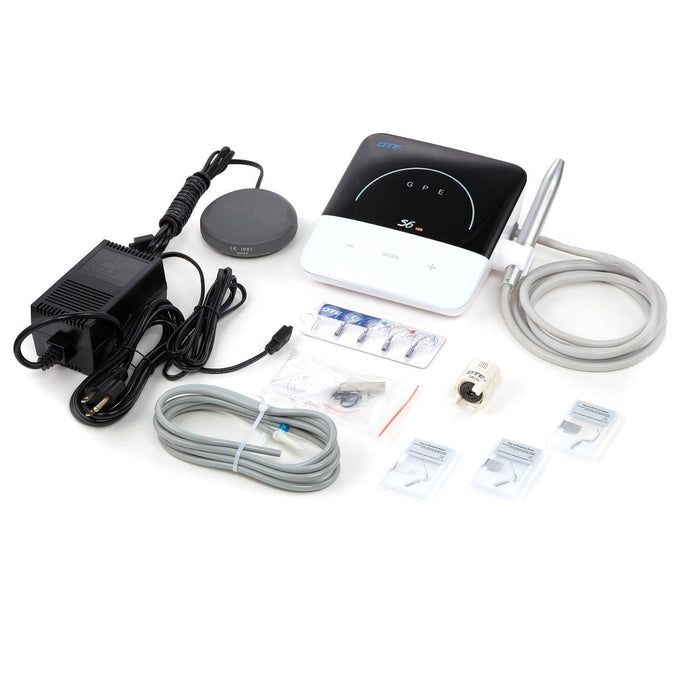

Packing List
- DTE S6 LED Ultrasonic Scaler × 1
- Detachable Handpiece (HD-8L) × 1
- Power Supply × 1
- Foot Switch × 1

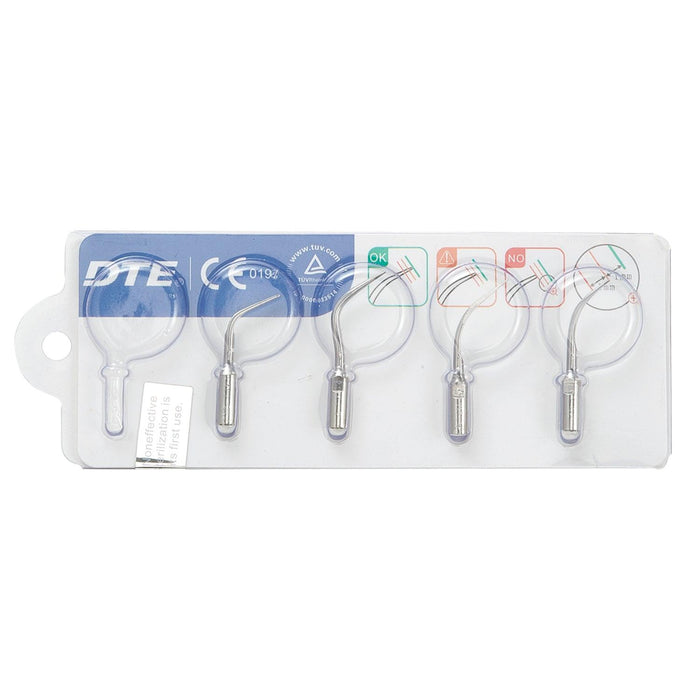

- Scaling Tips × 2: GD5 × 1; GD12 × 1
- Perio Tips × 3: PD4 × 1; PD7 × 1; PD12 × 1
- Endo Tips × 2: ED60 × 2
- Torque Wrench × 1
- Endo Wrench × 1
- Water Pipe × 1
- Waterproof "O" Ring × 12
- Instruction Manual × 1
- Qualified Certification × 1
- Warranty Card × 1
Warranty
One year's free repair for the whole unit from the date of purchase.
