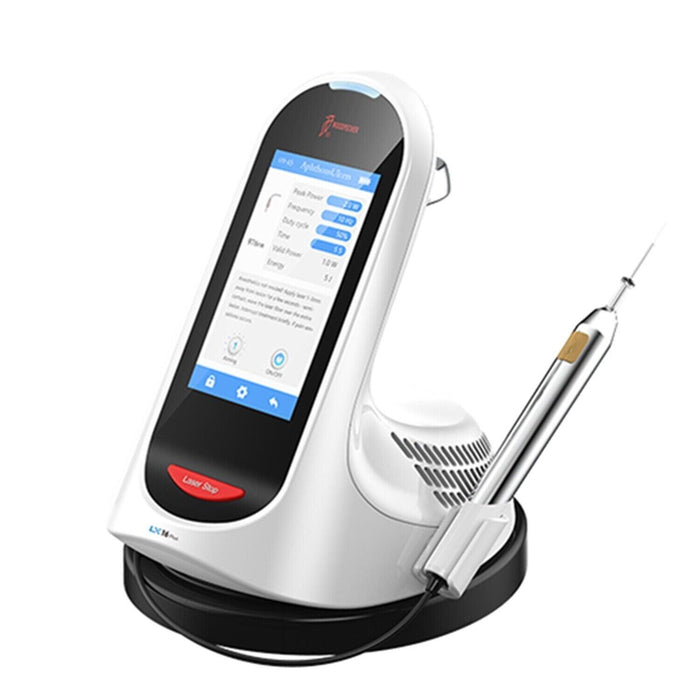

The Woodpecker LX16 Plus Diode Laser is a versatile, high-performance dental laser system designed for precise and efficient oral soft tissue treatment. Featuring advanced triple-wavelength laser technology (450 nm, 650 nm, and 976 nm), it supports a wide range of clinical applications including soft tissue surgery, periodontal therapy, endodontic disinfection, pain management, low-level laser therapy (LLLT), oral ulcer care, and adjunctive tooth whitening procedures.
With high-precision power control, autoclavable fiber tips, and comprehensive safety protection features, the LX16 Plus enables clean incisions, effective coagulation, and reduced thermal damage. This results in minimal bleeding, improved patient comfort, and faster postoperative healing, making it an ideal laser solution for modern dental practices seeking efficiency, versatility, and reliable clinical outcomes.
Features
-
High-Performance Triple-Wavelength Output
Features three laser wavelengths (450 nm, 650 nm, and 976 nm) designed to support a wide range of dental procedures, including soft tissue surgery, periodontal therapy, endodontic disinfection, pain management, low-level laser therapy (LLLT), and adjunctive tooth whitening applications.
-
Dual Control For Effortless Operation
Laser control via handpiece button or wireless foot pedal Allows flexible and easy switching between control modes
-
Powerful & Reliable Battery System
Built with dual 11.1V 2600mAh (57.7Wh) lithium batteries, the LX16 Plus laser can support extended clinical use on a single charge, making it ideal for busy dental clinics.
-
Comprehensive Laser Protection
Comes with three pairs of laser safety glasses to effectively protect dentists, assistants, and patients from laser radiation during treatment.
-
Secure Auto Shut-Down Protection
A secure protection mechanism automatically powers off the device after 5 minutes of inactivity, preventing overheating, extending product lifespan, and ensuring safety in every procedure.
-
Integrated Cooling System
Effectively regulates laser working temperature Brings stable power output and prolonged device lifespan
-
Dual Control For Effortless Operation
Laser control via handpiece button or wireless foot pedal Allows flexible and easy switching between control modes
-
Comprehensive Protection For Safe Use
Laser protective goggles designed for three wavelengths,protecting doctors,assistants,and patients
-
High-frequency Pulse Control For Ideal Cutting
Pulse frequency up to 20,000 Hz High power and ultra-short pulse width enable fast and precise cutting,minimizing thermal damage and carbonization for faster healing.
-
Premium Materials For Superior Experience
High-hydroxyl pure quartz core with fluorine-doped quartz cladding for higher transmission efficiency Outer polyimide coating for high-temperature resistance, excellent biocompatibility, and enhanced fiber durability,reducing breakage risks
-
Convenient Sterilization For Peace Of Mind
Autoclavable metal fiber tips & aluminum alloy handpiece sleeve Minimizes the risk of cross-infection.
-
Versatile Clinical Applications
The LX16 Plus diode laser is suitable for a wide range of dental procedures, including soft tissue surgery, endodontic and periodontal disinfection, peri-implantitis treatment, low-level laser therapy (LLLT), oral ulcer management, and teeth whitening treatments.
-
Remarkable Treatment Results
Minimizes bleeding during operation, reduces postoperative swelling and pain, and accelerates patient recovery—providing both clinicians and patients with a comfortable and efficient experience.
Technical Parameter
- Power adapter input：100-240Vac，50/60Hz，2.5A
- Main unit input：15V 6.0A
- Wavelength and power:
a）976± 20nm ： 0.2W-4W(CW), Peak Power 5W
chopped 1Hz to 20KHz
chopped mode:5us – 0.9S
b）650± 20nm ： 25mW-200mW(CW)
c）450± 20nm： 0.2W-3W(CW)
chopped 1Hz to 20KHz
chopped mode:5us – 0.9S
a) 976 nm: Class 4
b) 650 nm: Class 2
c) 450 nm: Class 4
- Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
- Aiming beam: 650 ± 20 nm /Pmax<5mW
-
Divergence:12.7°(According to IEC 60825-1: 2014)
-
Rechargeable battery: 11.1V/2600mAh x2 (57.7Wh)
- Time consumption for charging: about 4h (5 hours for first charging)
- Diverging half angle: 0.22 mad/ 12.6 °
- Size: 8.7 in×7.9 in×9.1 in (22 cm x 20cm x 23cm)
- Weight: 3.3 lb (1.5kg)
Packing List
- Master x 1
- Handle shell x 2
- MF2-14 x 2
- MF2-20 x 1
- MF3-4 x 3
- MF3-9 x 3
- MF4-4 x 3
- MF4-9 x 3
- DT15-Tip x 1
- DT20-Tip x 1
- DT30-Tip x 1
- BT8-Tip x 1
- Whitening-Tip x 1
- Bending tool x 1
- Fiber Optic Activation Paper x 1
- Cutting Pen x 1
- Remote control interlock x 1
- Goggles x 3
- Adapter x 1
- Foot Switch x 1
- Instruction manual x 1
- Packing list x 1
- Warranty card x 1
- Qualified certificate x 1
Warranty
ONE YEAR WARRANTY
