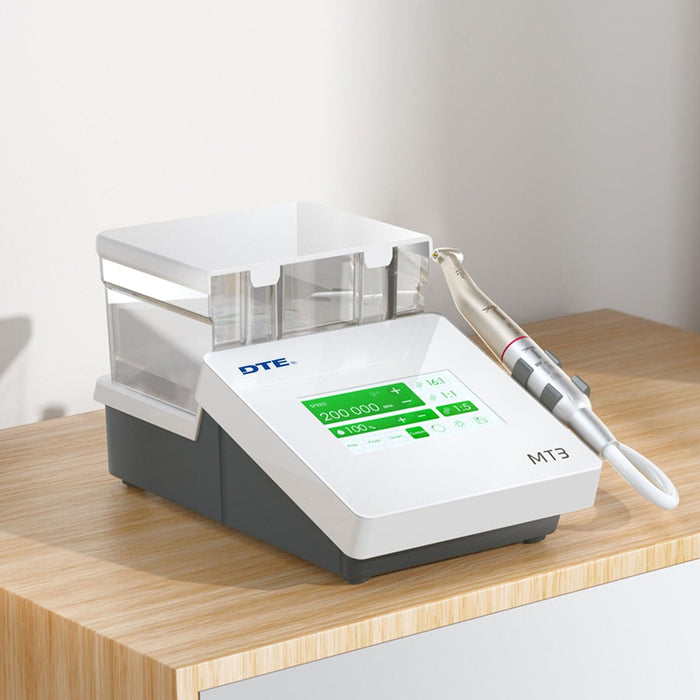

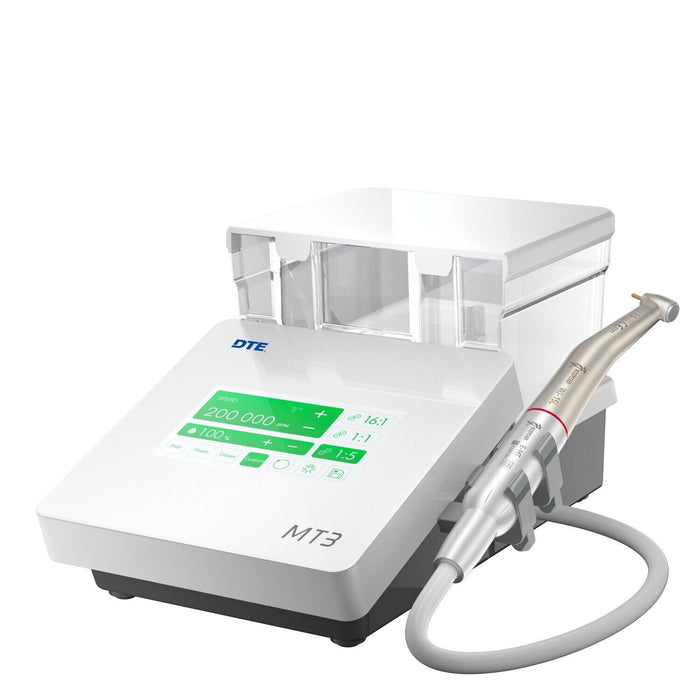

Woodpecker MT3 Dental Electric Motor with 1:5 Contra-angle

Woodpecker Dental Electric Motor MT3 with Water Supply System. Four-hole water spray. 1: 5 Contra angle. LED Handpiece. Consistent high power and torque. Touch Screen panel offers better operation. FDA approved. One Year Warranty.

Features

• Brushless micromotor, max speed: 200,000rpm
• Long service life and quiet operation - less noise and more comfort for patient.
• 32,000lux white led in the motor, compatible with fiber optic contra angle
• Consistent high power and torque.
• Touch Screen panel offers better operation
• Forward and reverse rotation.
• Small and surprisingly light.
• Digital speed read-out, Easy speed adjustment
• Three optional settings(1:1/16:1/1:5)
• E-Type coupler
• German bearing. More stable. More precise tooth preparation. Longer service life, lower vibration, more stable and precise cutting Guarantee stable speed and torque output
• High performance brushless motor. Higher torque, more powerful More powerful crown-splitting. Lower noise, micro-vibration 10 times the service life of brush motor.
• Automatic water and air supply systems. Free to place, no need to install on the dental unit plug and play. Easier for clinical use.
• Fewer aerosols. Four-hole water spray, stable output Over 50% aerosols fewer than air-driven handpieces. Guarantee safer treatment environment .

Specification of 1: 5 Contra angle

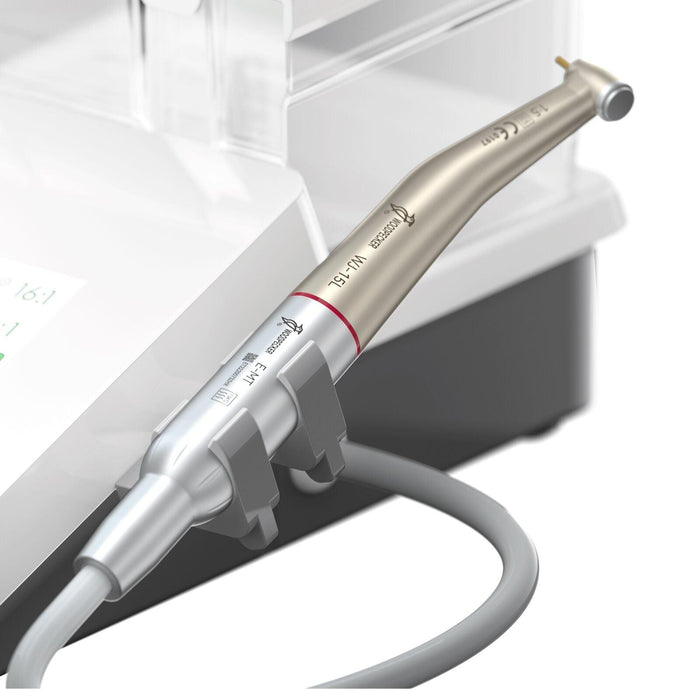

• Model: 1: 5 Contra angle
• Increasing: 1:5 ratio
• Torque: 64Ncm
• Clamping force: ＞4.0kg
• Rotation Speed: 200,000rpm/min
• Chuck Type: Push Button
• Brightness: 32000Lux
• Noise: ≤58dB
• Bur Applicable: Φ1.59-1.60mm
• Connector: ISO Standard connector

Specification of Dental Electric Motor

• Model: Dental Electric Motor
• 16:1 contra angle: 300rpm (M1)-1500rpm (M2)
• 1:1 contra angle: 10,000rpm(M1)-30,000rpm(M2)
• 1:5 contra angle: 50,000rpm(M1)-200,000rpm(M2)
• Working air pressure: 0.25Mpa-0.4Mpa
• Water Pressure:0.2Mpa-0.4 Mpa
• Charge Adaper: 110V-220V 50/60Hz
• Torque: 64Ncm

Packing List

• 1x LCD Mail Unit with 750ml Water Tank
• 1x Motor with cable and LED light
• 1x Manual
• 1x Power Adapter

Warranty
