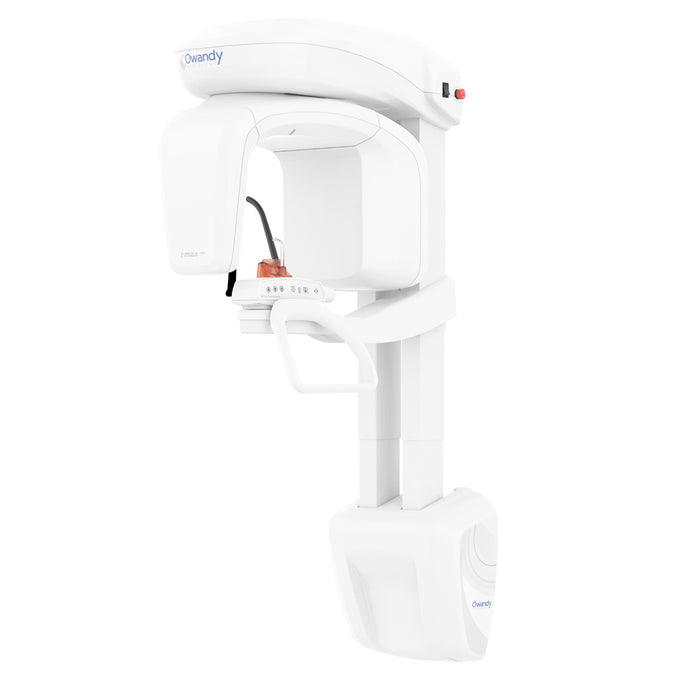

Owandy I-Max 2D PRO Wall-Mounted Digital Pan Unit front view - JMU Dental

Owandy I-Max 2D PRO Wall-Mounted Digital Pan Unit

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
SKU 22905002
$19,999.99
$19,999.99
$19,999.99
$18,899.99
$18,899.99
$18,899.99
I-Max PRO Configurations: Pan Only – Wall-Mounted

Free Shipping over $9.99, 1-5 Days for Delivery.

Accept 30-Day Return or Refund.

The Owandy I-Max PRO is a wall-mounted digital panoramic dental X-ray system engineered for an ultra-compact footprint and high-definition imaging. Designed to optimize clinical space without compromising performance, it delivers precise, detailed diagnostics and is widely regarded as one of the lightest panoramic systems on the market.

Features

  • Zero Floor Footprint: The wall-mounted design allows for easy installation in tight spaces, requiring less than 1㎡ of space.
  • ALI-S Technology: The Automatic Layers Integration System automatically selects the best image sections for perfect HD display without manual intervention.
  • Exceptional Image Quality: 70μ ultra-high quality for improved diagnosis of your patients.
  • Face-to-Face Positioning: Operators can position patients while facing them, ensuring better alignment and patient comfort.
  • Multi-Examination Programs: Features up to 24 programs for adults and children, including standard panoramic, TMJ, and maxillary sinus exams.
  • 24 2D Programs: The I-Max is very intuitive and easy to use. With 24 different 2D programmes, it is perfectly designed to meet all your requirements.
  • Software Compatibility: Products in the I-Max range are compatible with all major management software packages on the market.
  • Compact and Lightweight: Opt for the best technology taking up the least space. Walk around your surgery freely with this highly compact I-Max panoramic unit weighing just 62kg and devised in line with a "zero floor space" concept.
  • Scalability: The unit can be upgraded from 2D to 3D (Cone Beam) or cephalometric versions as practice needs grow

Technical Specifications

I-MAX I-MAX CEPH
Certification II B / CE0051
Power supply 110–120 V / 220–240 V, 50/60 Hz
Anode voltage 70 kVp ±8% 86 kVp ±8%
Anode current 7.1 mA ±10% 12.5 mA ±10%
SID (Source to Image Distance) 50 cm 52 cm (2D) / 165 cm (Ceph)
Total weight 62 kg 120 kg
Inherent filtration 2 mm Al eq. @ 70 kVp ≥2.5 mm Al eq. @ 86 kVp
HF generator Constant potential (DC)
X-Ray focal spot 0.5 mm EN 60336
Connection LAN, Ethernet (without dedicated PC) LAN Ethernet (dedicated PC)
Voxel n/a n/a

        Supported Functions

        Function I-MAX I-MAX CEPH
        Panoramic ✔ ✔
        Cephalometric ✖ ✔
        3D cone beam ✖ ✖
        Fitting type Wall Floor + wall
        Options Floor base plate / Wall column Floor base plate

        Warranty

        • 5-year warranty: All complete units come with a 2-year warranty, and key components are covered by an additional 3-year free extended warranty.
