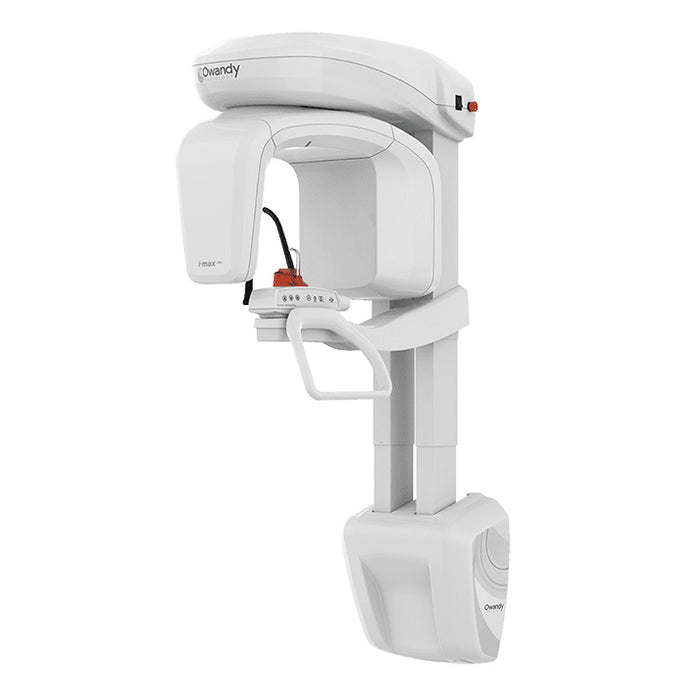

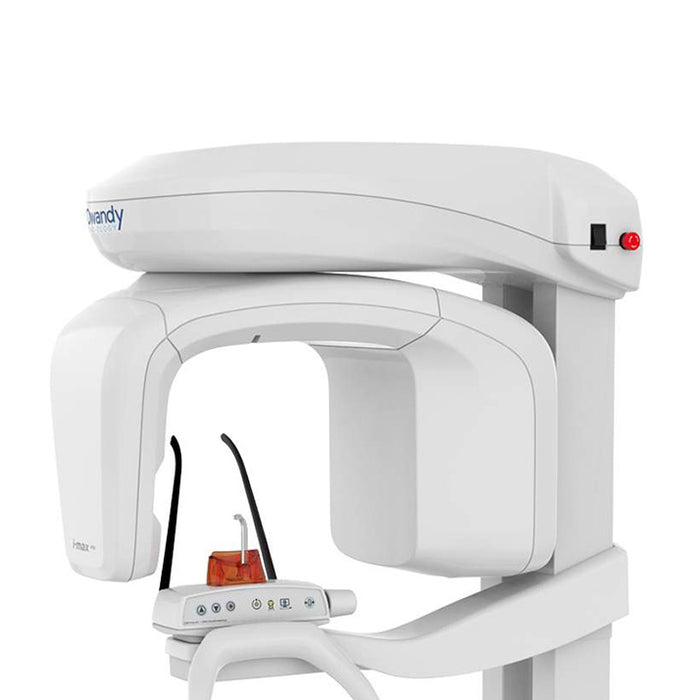

Owandy I-Max PRO Wall-Mounted Digital Pan Unit Dental Panoramic System

Owandy I-Max PRO Wall-Mounted Digital Pan Unit Dental Panoramic System

Special Order: Ships in 2-4 weeks

SKU 22905002
Owandy # 9304000011, 9304201011
$18,899.99
$18,899.99
$18,899.99
Model: Pan Only ā€“ Wall-Mounted Fixed Type (# 9304000011)

Fast, Secure Delivery ā€“ Door-to-Door Service in SoCal

Expert Tech Support ā€“ Installation Consultation Available

30ā€‘Day Moneyā€‘Back Guarantee ā€“ Easy Returns & Full Refunds

The Owandy I-Max PRO is a Standard high-definition dental panoramic system designed to enable more accurate diagnosis, better treatment planning and better patient outcomes. The dental panoramic integrates seamlessly into digital workflows. From imaging to guided surgery, it ensures the highest level of precision and safety.

Features

  • Zero Floor Footprint: The wall-mounted design allows for easy installation in tight spaces, requiring less than 1掔 of space.
  • ALI-S Technology: The Automatic Layers Integration System automatically selects the best image sections for perfect HD display without manual intervention.

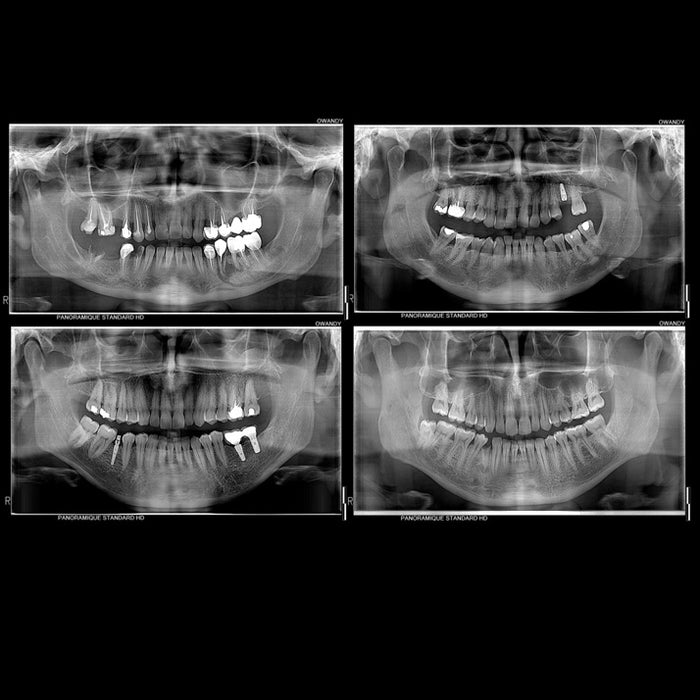

  • Exceptional Image Quality: 70Ī¼ ultra-high quality for improved diagnosis of your patients.
  • Face-to-Face Positioning: Operators can position patients while facing them, ensuring better alignment and patient comfort.

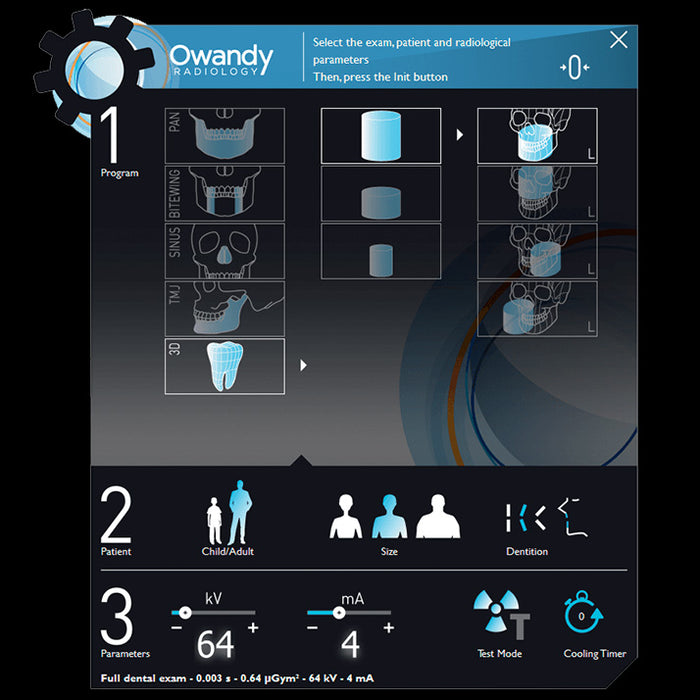

  • Multi-Examination Programs: Features up to 24 programs for adults and children, including standard panoramic, TMJ, and maxillary sinus exams.
  • 24 2D Programs: The I-Max is very intuitive and easy to use. With 24 different 2D programmes, it is perfectly designed to meet all your requirements.
  • Software Compatibility: Products in the I-Max range are compatible with all major management software packages on the market.
  • Compact and Lightweight: Opt for the best technology taking up the least space. Walk around your surgery freely with this highly compact I-Max panoramic unit weighing just 62kg and devised in line with a "zero floor space" concept.
  • Scalability: The unit can be upgraded from 2D to 3D (Cone Beam) or cephalometric versions as practice needs grow

Technical Specifications

I-MAX I-MAX CEPH
Certification II B / CE0051
Power supply 110ā€“120 V / 220ā€“240 V, 50/60 Hz
Anode voltage 70 kVp Ā±8% 86 kVp Ā±8%
Anode current 7.1 mA Ā±10% 12.5 mA Ā±10%
SID (Source to Image Distance) 50 cm 52 cm (2D) / 165 cm (Ceph)
Total weight 62 kg 120 kg
Inherent filtration 2 mm Al eq. @ 70 kVp ā‰„2.5 mm Al eq. @ 86 kVp
HF generator Constant potential (DC)
X-Ray focal spot 0.5 mm EN 60336
Connection LAN, Ethernet (without dedicated PC) LAN Ethernet (dedicated PC)
Voxel n/a n/a

        Supported Functions

        Function I-MAX I-MAX CEPH
        Panoramic āœ” āœ”
        Cephalometric āœ– āœ”
        3D cone beam āœ– āœ–
        Fitting type Wall Floor + wall
        Options Floor base plate / Wall column Floor base plate

        Warranty and Installation

        • 5-year warranty: All complete units come with a 2-year warranty, and key components are covered by an additional 3-year free extended warranty.
        • Installation Services: Professional installation services are available in Southern California. Please contact our service team at service@jmudental.com for availability, service details, and pricing information.
        šŸ“ Owandy I-Max PRO User Manual Login To Download
