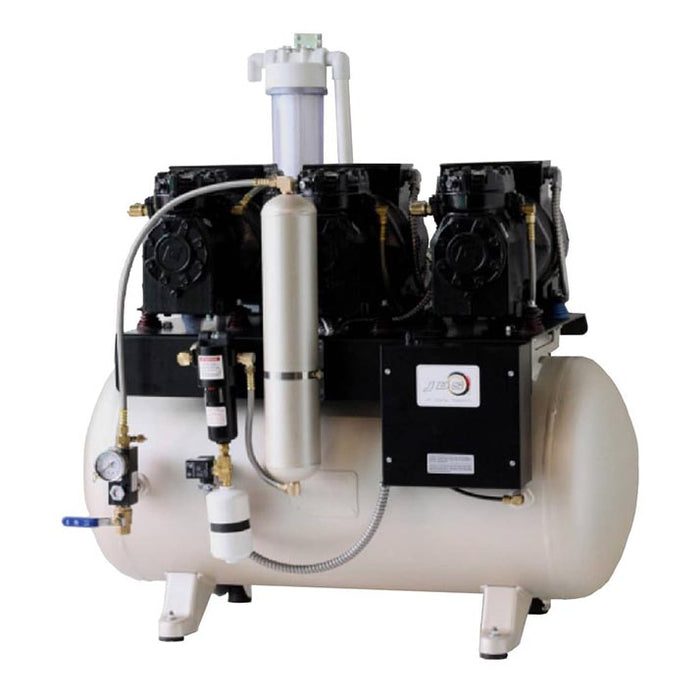

JDS JLC Series Lubricated Air Compressor 2.0 HP & 3.0 HP

SKU 35102001
Original price
Original price
$20,950.00
$20,950.00
Current price $20,950.00
Model: JLC22

Fast, secure delivery – Door-to-door service in SoCal.

Expert tech support – Installation consultation available.

30‑day money‑back guarantee – Easy returns & full refunds.

JLC Series 2.0/3.0 HP Lubricated Air Compressor: Consistent Clean Air, High-CFM Power and Quiet Operation

Power your practice with clinical-grade compressed air using the JLC Series lubricated air compressors. The JDS JLC Series lubricated dental air compressors deliver clean, dry, and reliable compressed air for high-demand dental practices. Powered by Copeland heads for whisper-quiet performance, each system integrates a 0.01-micron filter to capture dust, oil vapor, and bacteria, along with purge tank and desiccant dryer system that eliminates moisture at the source. Available in dual-head and triple-head configurations, the JLC Series ensures continuous, worry-free air power for all your active operatories.

Features

  • Copeland Powered Heads: Ultra-quiet Copeland motors drive this JLC Series system to deliver quiet, reliable service and uninterrupted pressure.
  • 0.01 Micron Filtration: High-efficiency 0.01 micron filter catches the small contaminants, leaving only the clean air possible by blocking dust, oil, smoke, and bacteria.
  • Integrated Exhaust Silencer: Advanced heavy-duty exhaust silencer keeps the noise level low and filters the purge air to keep your mechanical room clean.
  • Purge Tank & Desiccant Dryer System: This helps remove moisture from compressed air and supports the dryer regeneration process, helping provide clean, dry air for dental equipment.

Specifications

Brand JDS JDS
Model JLC22 JLC32
Total HP  2.0 HP  3.0 HP
User Capacity  3-5 5-7
Voltage/Frequency  208-230V / 60Hz  208-230V / 60Hz
Amps  12 18
Breaker Size  20 30
CFM  10.6 15.9
Heads  2 3
Noise Level 71 dBA 75 dBA
Tank Volume  20 Gallons 30 Gallons
Size (H x W x D)  30" x 34" x 24"  33" x 39" x 25"
Temperature Range  40°F-104°F  40°F-104°F
Shipping Weight 360 lbs 520 lbs
📁 JLC Series Installation Guide Login To Download
