iRay Portable Handheld Intra-oral X-ray Machine with Digital Intra-oral Sensors - JMU DENTAL INC

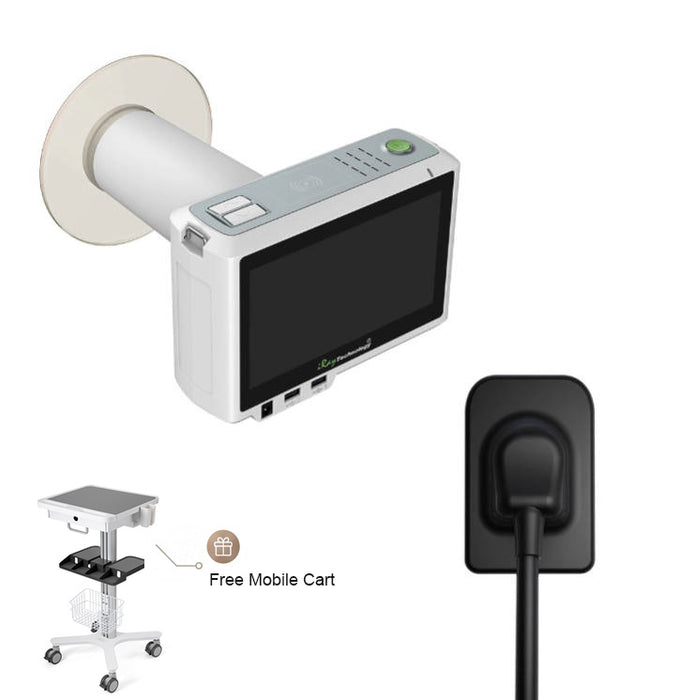

iRay Portable Intra-oral X-ray Canis 014D07 with Digital Sensor

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

SKU 52035001+22902006+22911004

iRay # Canis 014D07

36% OFF

$6,399.99

$4,099.99

Quantity

Enjoy free shipping on most items over $9.99.

Ships from California. Delivered in 1–5 business days.

Accept 30-day return or refund.

Description

iRay Portable Handheld X-ray Machine 7-inch LCD Touch Screen Shoot-and-see Function, Replaceable Battey Wireless image transmission Light weight Support multi-language (#Canis 014D07)

iRay Digital Intra-oral Sensors Pixel Matrix 1200 × 1650 Black #Pluto 0015X FDA approved. 20 μm pixel pitch CMOS sensor with CsI scintillator. High resolution. AED trigger, fast and easy workflow.

Features of the Portable Intraoral X-ray

Simple Operation: Featuring a 7-inch LCD touch screen and Android Operating System, Canis 014D07 ensures intuitive control right at your fingertips.
Effortless Connectivity: It can use iRay sensor, transfer images seamlessly via WiFi or USB, enabling quick and convenient sharing and analysis.
Compact and Lightweight: Designed for practicality, Canis 014D07 is small and lightweight, making it easy to maneuver and transport between patients variety of network connection modes.
Shoot and see: image enhancement, move, Reverse color, contrast etc. Capture and view images instantly for efficient workflow. Powered by iRay sensor technology, this device delivers clear and precise images, facilitating accurate diagnostics.
Independent patient management: Organize patient data efficiently for better record-keeping.
Automatic Pitch angle display : Ensure optimal positioning for accurate X-ray results.
Replaceable battery : Keep your device powered up for extended periods.

Note: To use the iRay sensor with third-party imaging software (e.g., Eaglesoft, Dexis, TigerView), pls install the TWAIN driver – it is required for proper communication and image capture.

Specifications of the Portable X-ray

Brand	iRay
Model	Canis 014D07
Operating System	Android
Screen	7-inch Touch Screen
Exposure Time	0.04s - 2s
Anode Angle	12°
Spot	0.4
Data Transmission	Wireless & USB
Total Filter	≥3.1mm AL
Weight	≤2.5kg
Internal Radiation Shielding	≤2.4μGy/h@ 1m
Operating Temperature	10-40℃
Storage & Transport Temperature with Package	-10℃-45℃
Operating Humidity (% RH) (Non-Condensing)	30-75
Storage & Transport Humidity with Package (% RH) (Non-Condensing)	30-75

Features of the Digital Intra-oral Sensors

Pluto 0001X – Features & Benefits

Universal size: Suitable for both children and adults, ideal for general practices that treat mixed patient groups.
Medium active area: Offers a balance between patient comfort and diagnostic coverage.
Ergonomic design: Rounded edges and flexible cable reduce discomfort during intraoral positioning.
Versatile use: Perfect for pediatric dentistry, routine adult check-ups, and veterinary applications.
Quick integration: Direct USB connection, no control box required.

Pluto 0002X – Features & Benefits

Adult-focused design: Larger sensor size tailored for adult patients, providing wider coverage.
Reduced retakes: Bigger active area captures more in a single image, minimizing the need for multiple exposures.
Enhanced diagnostic efficiency: Ideal for routine adult X-rays, prosthodontics, orthodontics, and implant planning.
Comfort + durability: Smooth edges and reinforced housing with IP68 waterproof protection.
Low-dose imaging: Optimized sensitivity for high-quality images at minimal radiation exposure.

Specifications of the Digital Intra-oral Sensors

Detector Technology	CMOS
Scintillator	Direectly deposited Csl:TI
Pixel Pitch(μm)	20
Active Area (mm²)	20x 30(Pluto 0001X) , 26x 36(Pluto 0002X)
AD Conversion(bit)	14
Exposure Mode	Smart AED
X-ray Exposure Window	Max.5s
X-ray Energy Range	55 ~ 100kV
Data Interface	Direct USB 2.0/3.0
Power Dissipation	≤0.8W
Dimensions	25.0×38.5×4.5(Pluto 0001X) , 31.0 x 45.0 x 4.5(Pluto 0002X)
Length of Cable (ft)	9.84'(Standard), 16.40'(Option)
Housing Material	Kevlar
X-Ray shielding	Pb-shield behind active area
Radiation dose	≥50Gy
Ingress Protection	IP68
Operating Temperature	50~104°F
Storage& Transport Temperature with Package	14~140°F
Operating Humidity (% RH)	20~90(Non-Condensing)
Storage Transport Humidity with Package (% RH)	10~95(Non-Condensing)

⚠️ Important Pre-Purchase Checklist

To guarantee proper functionality and a trouble-free setup, we strongly recommend that you:

Verify your PC specifications – Ensure your computer meets the minimum hardware requirements for both the operating system and the imaging software you intend to use.
Confirm imaging software compatibility – Check that your current version of Eaglesoft, Dexis, TigerView, or other TWAIN-based software is fully supported.
Review system environment – Consider factors such as USB port version, available storage, and administrator privileges for installation.

Warranty

1-year warranty

User Guide

Product Purchase Advisory & System Requirements Guide

Thank you for your interest in this imaging solution. To ensure a seamless installation and optimal performance, please review the following guidelines carefully before completing your purchase.

Included Software Package

iRay DR Imaging Software – Lifetime license included with your purchase, with no recurring subscription fees.

Compatible Third-Party Imaging Software

This device supports TWAIN-compatible imaging platforms, including but not limited to:

Eaglesoft
Dexis
TigerView

Note: Compatibility with other TWAIN-enabled software may also be available, but the above applications have been fully tested and verified.

Supported Operating Systems

The system is compatible with the following Windows operating environments:

Windows 7
Windows 10
Windows 11

FAQs

Is this device FDA certified?

Yes, this X-ray machine is FDA certified, ensuring it meets strict safety and quality standards.

How to get the installation or training support for the device?

Absolutely Our professional technical team provides guidance and ongoing after-sales support to help you get started quickly and use the device with confidence.

Is shipping included?

Yes, we provide free shipping within the United States, so you can save on extra costs.

Does the product come with a warranty?

Yes, the iRay Portable Handheld Intraoral X-Ray Machine comes with a 1-year warranty, giving you peace of mind and reliable coverage for your investment.
