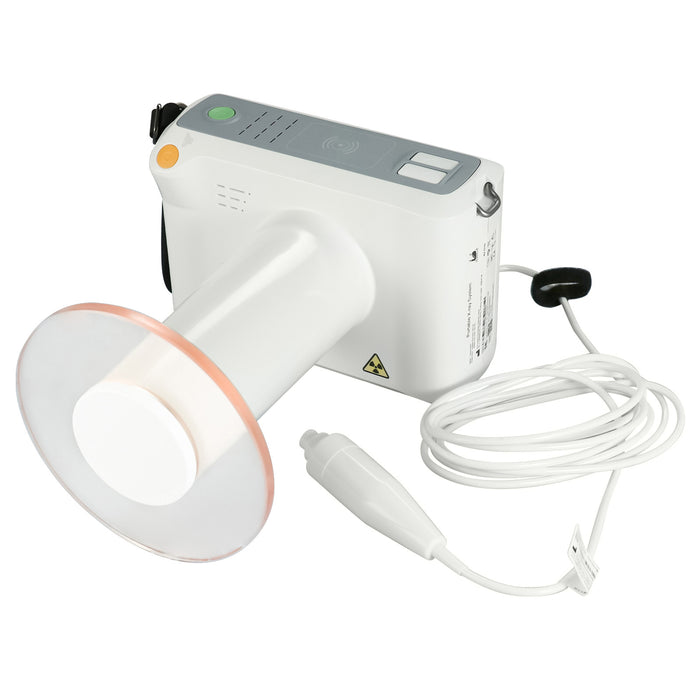

iRay Portable Handheld X-ray Machine 7-inch LCD Touch Screen Shoot-and-see Function, Replaceable Battey Wireless image transmission Light weight Support multi-language (#Canis 014D07)

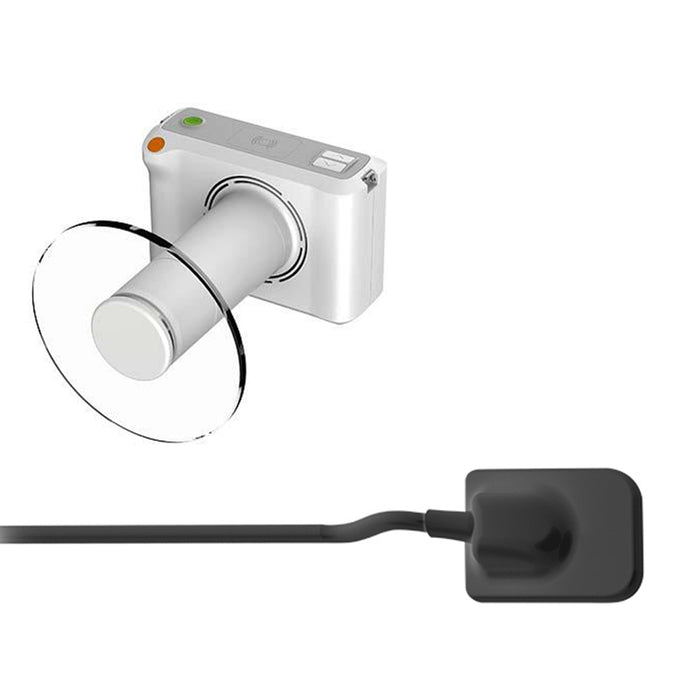

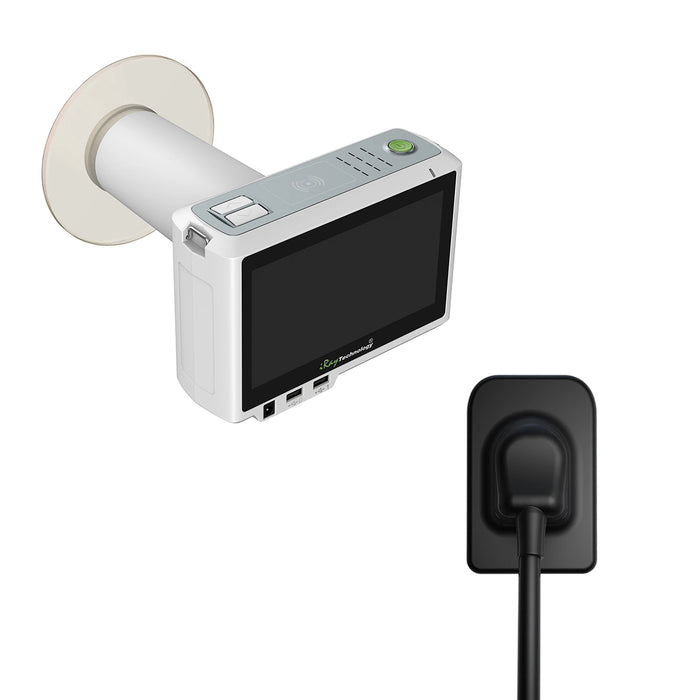

iRay Digital Intra-oral Sensors Pixel Matrix 1200 × 1650 Black #Pluto 0015X FDA approved. 20 μm pixel pitch CMOS sensor with CsI scintillator. High resolution. AED trigger, fast and easy workflow.
The Portable X-ray Machine of Features
-
Simple Operation: Featuring a 7-inch LCD touch screen and Android Operating System, Canis 014D07 ensures intuitive control right at your fingertips.
-
Effortless Connectivity: It can use iRay sensor, transfer images seamlessly via WiFi or USB, enabling quick and convenient sharing and analysis.
-
Compact and Lightweight: Designed for practicality, Canis 014D07 is small and lightweight, making it easy to maneuver and transport between patients variety of network connection modes.
-
Shoot and see: image enhancement, move, Reverse color, contrast etc. Capture and view images instantly for efficient workflow. Powered by iRay sensor technology, this device delivers clear and precise images, facilitating accurate diagnostics.
-
Independent patient management: Organize patient data efficiently for better record-keeping.
-
Automatic Pitch angle display : Ensure optimal positioning for accurate X-ray results.
-
Replaceable battery : Keep your device powered up for extended periods.
Experience the efficiency and reliability of Canis 014D07 – the handheld intra-oral X-ray solution designed to enhance your practice.
Note: product does come with its own software system and only supports its own software
The Portable X-ray Machine of Technical Parameters
| Canis 014D07 |
| Operating System |
Android |
| Screen |
7-inch Touch Screen |
| W |
140 |
| kV |
70 |
| mA |
2 |
| Exposure Time （s） |
0.04 - 2 |
| Anode Angle |
12° |
| Spot |
0.4 |
| Data Transmission |
Wireless & USB |
| Total Filter |
≥3.1mm AL |
| Weight (kg) |
≤2.5kg |
| Internal Radiation Shielding |
≤2.4μGy/h@ 1m |
| Operating Temperature(℃) |
10-40 |
| Storage & Transport Temperature with Package(℃) |
-10-45 |
| Operating Humidity (% RH) (Non-Condensing) |
30-75 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing) |
30-75 |
The Digital Intra-oral Sensors of the Features
Pluto 0001X – Features & Benefits
-
Universal size: Suitable for both children and adults, ideal for general practices that treat mixed patient groups.
-
Medium active area: Offers a balance between patient comfort and diagnostic coverage.
-
Ergonomic design: Rounded edges and flexible cable reduce discomfort during intraoral positioning.
-
Versatile use: Perfect for pediatric dentistry, routine adult check-ups, and veterinary applications.
-
Quick integration: Direct USB connection, no control box required.
Pluto 0002X – Features & Benefits
-
Adult-focused design: Larger sensor size tailored for adult patients, providing wider coverage.
-
Reduced retakes: Bigger active area captures more in a single image, minimizing the need for multiple exposures.
-
Enhanced diagnostic efficiency: Ideal for routine adult X-rays, prosthodontics, orthodontics, and implant planning.
-
Comfort + durability: Smooth edges and reinforced housing with IP68 waterproof protection.
-
Low-dose imaging: Optimized sensitivity for high-quality images at minimal radiation exposure.
The Digital Intra-oral Sensors of the Specifications
| Detector Technology |
CMOS |
Dimensions (mm³） |
25.0×38.5×4.5(Pluto 0001X)
31.0 x 45.0 x 4.5(Pluto 0002X) |
|
|
| Scintillator |
Direectly deposited Csl:TI |
Length of cable (ft) |
9.84'(Standard), 16.40'(Option) |
| Pixel Pitch(μm) |
20 |
Housing material |
Kevlar |
| Active Area (mm²) |
20x 30(Pluto 0001X)
26x 36(Pluto 0002X) |
X-Ray shielding |
Pb-shield behind active area |
|
|
| AD Conversion(bit) |
14 |
Radiation dose |
≥50Gy |
| Exposure Mode |
Smart AED |
Ingress Protection |
IP68 |
| X-ray Exposure Window (s) |
Max.5s |
Operating Temperature |
50~104°F |
| X-ray Energy Range (kV) |
55 ~ 100kV |
Storage& Transport Temperature with Package |
14~140°F |
| Data Interface |
Direct USB
USB 2.0/3.0 |
Operating Humidity (% RH) |
20~90(Non-Condensing) |
|
|
| Power Dissipation(W) |
≤0.8W |
Storage Transport Humidity with Package (% RH) |
10~95(Non-Condensing) |
FAQ
Q: Is this device FDA certified?
A: Yes, this X-ray machine is FDA certified, ensuring it meets strict safety and quality standards.
Q: Do you offer installation or training support?
A: Absolutely! Our professional technical team provides guidance and ongoing after-sales support to help you get started quickly and use the device with confidence.
Q: Is shipping included?
A: Yes, we provide free shipping within the United States, so you can save on extra costs.
Q: Does the product come with a warranty?
A: Yes, the iRay Portable Handheld Intraoral X-Ray Machine comes with a 1-year warranty, giving you peace of mind and reliable coverage for your investment.
