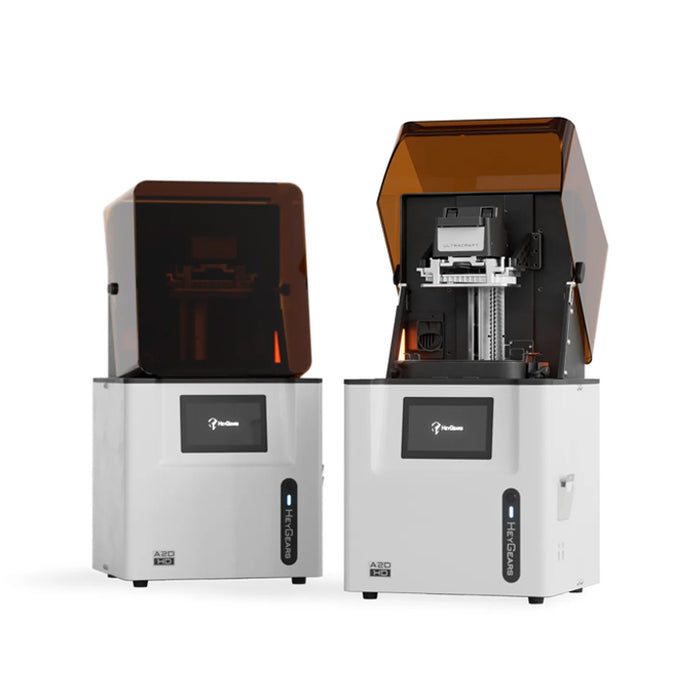

HeyGears UltraCraft A2D HD Dental 3D Printing System

Ships in 2-3 weeks

SKU 10101001

HeyGears # 16090031304, 11030201171

$5,799.99

Quantity

Fast, secure delivery – Door-to-door service in SoCal.

Expert tech support – Installation consultation available.

30‑day money‑back guarantee – Easy returns & full refunds.

Description

HeyGears UltraCraft A2D HD Dental 3D Printing System, a next-generation, compact dental 3D printing system engineered for high-efficiency digital workflows. Designed for both in-house clinics and large-scale dental labs, this powerful mini-lab delivers exceptional precision and industry-leading speed.

Features

Polish-Free & High-Transparency Output: Equipped with optimized printing profiles to deliver ultra-smooth surface quality. Eliminates the need for tedious manual post-processing and polishing, saving hours of labor while achieving crystal-clear results.
Superior Speed & Efficiency: Boosts throughput with the ability to print up to 5 full-arch models in 20 minutes, reduces chairside waiting time and optimizes daily lab output.
Precision & Accuracy: Utilizes high-resolution 1K technology for superior accuracy, ensures detailed output for precise margins on models and aligners

Specifications

Build Volume	163.2 x 91.8 x 110 mm （6.42 x 3.61 x 4.33 in）
Resolution	1920 x 1080 p
XY Native Pixel	85 μm
Accuracy	±42.5 μm
Light Source Wavelength	385nm & 405nm
Light Source Life	> 30,000 h
Dimensions	425 x 380 x 822 mm（16.7 x 15 x 32.4 in）
Smart Release Platform	Included
Pulsing Release Module	Optional
HT Resin Tank	Optional

User Guide

The 4K Upgrade Service enhances the printing precision of your device, delivering finer details and higher-resolution output. This upgrade can be purchased together with your UltraCraft A2D HD Printer at the time of order, or added later as your application requirements evolve—offering you the flexibility to scale up when needed.

📁 A2D_HD_Product_Brochure Login To Download

FAQ

How many Build Plates and Resin Tanks do I need?

It depends on how many resins you use. For a single resin, one Build Plate and one Resin Tank are sufficient. For multiple resins, we recommend a dedicated Build Plate + Resin Tank pair for each resin type—this lets you switch materials instantly without cleaning the tank between prints.

Can I start with one set and add more later?

Absolutely. You can purchase additional Build Plates and Resin Tanks at any time as your material library grows. Start with one set and expand when needed.

Do I need to clean the tank when switching?

No—if you have a dedicated Resin Tank and Build Plate assigned to each resin. Simply swap the entire set and you're ready to print. No cleaning required.

Can I leave resin in the tank between prints?

Yes. Each Resin Tank comes with a cover to seal the resin. Under proper light management, the resin remains stable in the tank for extended periods. Before printing, just stir the resin and you're good to go.

Is this standard in dental workflows?

Yes. Using multiple dedicated Resin Tanks for different materials is a standard practice, especially in dental labs, where frequent material switching and high efficiency are daily requirements.

How often should I replace the Resin Tank Film?

We recommend replacing the film after 500+ print cycles to maintain optimal print quality and reliability. Replacement frequency may vary depending on resin types and usage intensity—inspect the film regularly for signs of wear and replace as needed.
