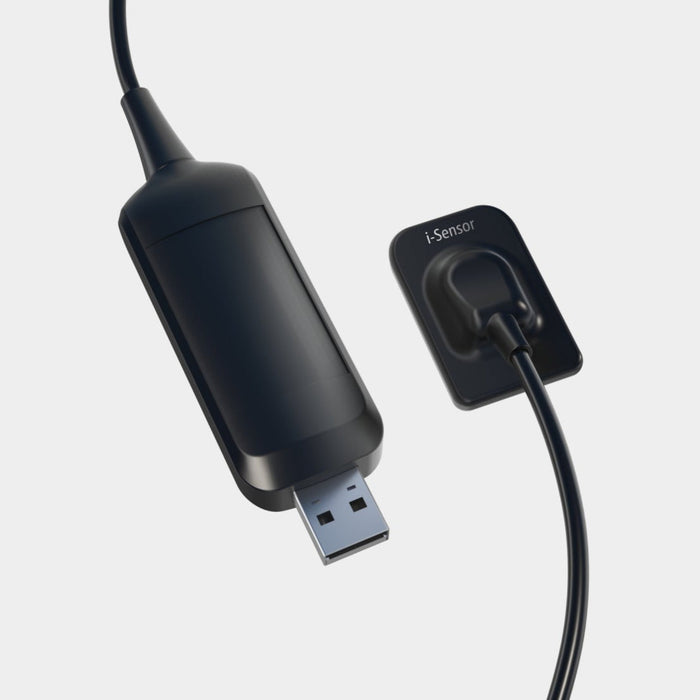

iRay Digital Intra-oral X Ray Sensors Black #Pluto 0000X for Children and Pets

iRay Digital Intra-oral Sensors Black #Pluto 0000X for Children and Pets, High-Resolution CMOS Sensor, Direct USB Connection, AED Trigger Function, Wide dynamic range.

Features

• Advanced CMOS sensor technology
• low dose clinical imaging
• High resolution
• Wide dynamic range
• Standard Size 0 accommodate children
• Slim, rounded corner and smooth edge
• Direct USB connectivity
• AED trigger, fast and easy workflow
• Durable material and components
• Anti-drop with a maximum height of 1.5m
• Friendly software user interface

Dimensions

• Mechanical: 0.921 in x 1.323 in x 0.177 in
• Active Area: 0.71 in x 0.94 in

Specifications

• General Technique Specifications
  • Sensor technology: CMOS
  • Scintillator: CsI(TI) without FOP Pixel pitch
  • Pixel pitch: 20um
  • Active area:  0.71" x 0.95" / 18mm x24mm
  • AD Conversion: 16 bit
  • X-ray trigger mode: AED
  • Exposure window: Max. 5s, and programmable
  • X-ray Energy: 55-100kV
  • Control interface: Direct USB, USB2.0

• Image Quality
• Dark noise: <18LSB
• Maximum linear dose: ≥600uGy

• Response Linearity: ≥0.99

• Theoretical resolution: 25 lp/mm

• Global non-uniformity: ≤2%

• Ghost(10s): <1%
• Electrical
• Operating voltage: 5V DC
• Supply current: 400mA

• Power consumption: ≤2W

• Protection against electrical shock: type BF

• Electric class: Protection class II
• Mechanical
  • Sensor dimension(W x L): 0.92" x 1.32"/ 23.4mm x 33.6mm, with rounded corners and smooth edge
  • Sensor thickness: 4.5+0.1mm
  • Housing material: Kevlar
  • Ingress protection of sensor: IP68
  • Length of cable: 106.3"/ 2.7m
  • Single-use sensor holder: Could be provided by iRay
